[RyuJIT] Fix bad VEX encoding to avoid false register dependency

[fiigii]

This codegen issue was detected from SqrtDouble and SqrtSinge benchmarks.

Disassembly of a hot loop in SqrtDouble shows the second operand of vsqrtsd always set to xmm0 (the default value of VEX.vvvv in RyuJIT).

Block 2:
--
vaddsd xmm1, xmm1, qword ptr   [rip+0xd9]
vsqrtsd xmm2, xmm0, xmm1  ;;; xmm0 is not allocated to vsqrtsd
vaddsd xmm0, xmm0, xmm2
inc edi
cmp edi, 0x1388
jl 0x7fc0b96f3efe <Block 2>

This codegen introduces false register dependency on xmm0 that causes obviously higher CPI. Meanwhile, we recommend that keep the second operand same as the third one rather than same as the destination for this kind of instructions.

code	execution time
vsqrtsd dst, xmm0, src	3.07s
vsqrtsd dst, dst, src	2.25s
vsqrtsd dst, src, src	0.84s

The codegen after this change

Block 2:
--
vaddsd xmm1, xmm1, qword ptr   [rip+0xd4]
vsqrtsd xmm2, xmm1, xmm1
vaddsd xmm0, xmm0, xmm2
inc edi
cmp edi, 0x1388
jl 0x7fe8c0da44ab <Block 2>

[fiigii]

cc @russellhadley @CarolEidt @tannergooding @jkotas

[fiigii]

#14134 has the same concern on VEX-encoded roundss/d, @tannergooding you may be interested 😄

[CarolEidt]

Thanks for identifying these. I think the naming should be made clearer.

[fiigii]

@CarolEidt how about IsDstDstSrcAVXInstruction?

[tannergooding]

@fiigii, I wonder if this might be the issue I was encountering, on machines with AVX, when using Vector<double> to vectorize code one of the BenchmarkGame benchmarks.

I was actually seeing slightly worse performance than the non-vectorized implementation and, based on a cursory glance, it looked to be poor codegen.

[CarolEidt]

how about IsDstDstSrcAVXInstruction?

I like it! Better that either alternative I proposed.

[fiigii]

@tannergooding If you mixed vectorized code with the scalar sqrt calculations, it might be. I recommend you to run VTune on the BenchmarkGame benchmarks with "advanced hotspot" or "general exploration" analysis to locate the problematic basic blocks.

[tannergooding]

@fiigii, thanks for the tip, I'll definitely try that out.

For reference:
In this case, its a block that looks like this:

for (int i = 0; i < n; i += 4)
{
	var tmp = vi * invN;

	Unsafe.Write(((byte*)pCrb) + i, tmp - onePtFive);
	Unsafe.Write(((byte*)pCib) + i, tmp - onePtZero);

	vi += add;
}

Which is generating:

	xor         edx,edx
	test        ebx,ebx
	jle         end
loop:
	vmulpd      ymm1,ymm0,ymm6
	vsubpd      ymm2,ymm1,ymm8
	mov         rcx,qword ptr [rsp+48h]
	movsxd      rax,edx
	vmovupd     ymmword ptr [rcx+rax],ymm2
	vsubpd      ymm1,ymm1,ymm7
	mov         rcx,qword ptr [rsp+40h]
	movsxd      rax,edx
	vmovupd     ymmword ptr [rcx+rax],ymm1
	vaddpd      ymm0,ymm0,ymm9
	add         edx,4
	cmp         edx,ebx
	jl          loop
end:
	xor         edx,edx
	mov         qword ptr [rsp+40h],rdx
	mov         qword ptr [rsp+48h],rdx

Where:

ymm0 = vi
ymm6 = invN
ymm7 = onePtZero
ymm8 = onePtFive
ymm9 = add

[fiigii]

@tannergooding the codgen of this program looks fine, but there are two ymm stores in the loop body. Could you try to measure the cache line split in VTune? That requires you to collect customized PMU events and analysis.

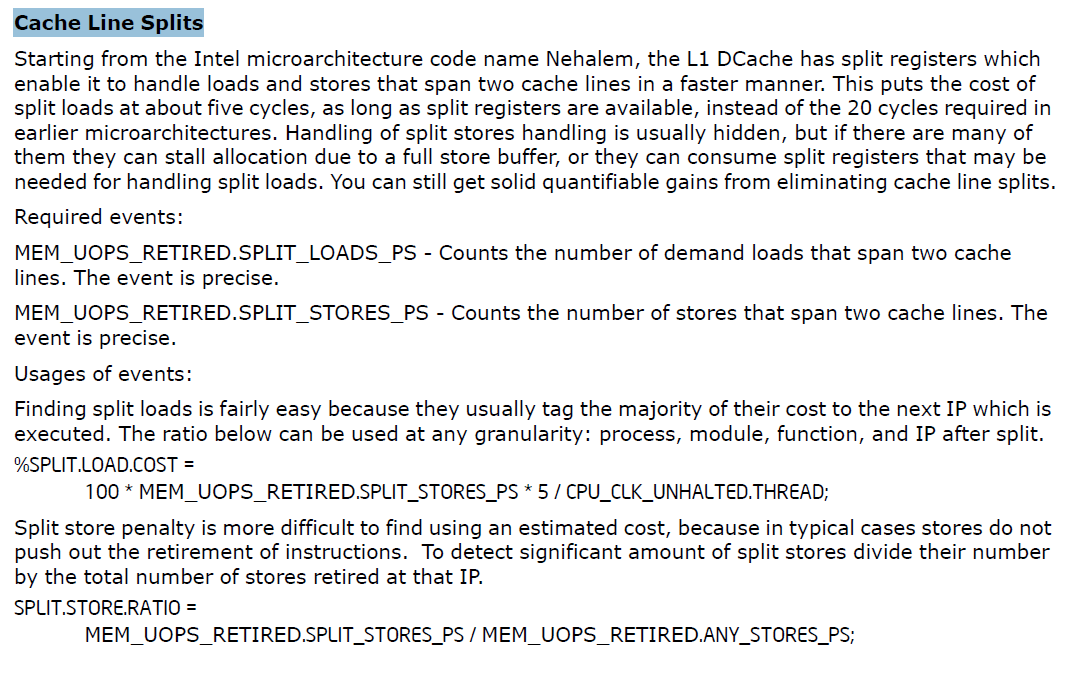

Please see the section B.5.4.4 in Intel® 64 and IA-32 Architectures Optimization Reference Manual.

[fiigii]

@tannergooding BTW, what was the CPU you used for the benchmark?

[tannergooding]

I checked on an AMD Ryzen 1800X, an Intel i7-6600U, and a Intel i7-4790

[fiigii]

Test VectorConvert failed in the CI system but passed on my local machine...

[CarolEidt]

Test VectorConvert failed in the CI system but passed on my local machine...

What machine are you testing on? Based on the output, it appears that the highest order 64-bits of a 256-bit Vector conversion from Vector<int64> to Vector<double> are not being correctly converted. It appears to be a real failure.

[fiigii]

I am using Intel Core i7 6700K (Skylake). I will look into the codegen, thanks.

[CarolEidt]

I am using Intel Core i7 6700K (Skylake). I will look into the codegen, thanks.

That's odd; I believe it's the case that the codegen is the same for any AVX2-capable target, and clearly the CI system was an AVX2-capable target, since it's using 256-bit vectors. I'll be curious to see if you can find out why you are unable to duplicate the failure.

[tannergooding]

@fiigii, they are using Azure VM's. @mmitche might know which CPU they are using. Otherwise, I know where to look It up from and can update in a bit.

[mmitche]

@tannergooding Not sure. We're using D3_v2's, which might have a mix of types.

[fiigii]

@CarolEidt @tannergooding I checked the manual again that cvtsi2ss/d is different from sqrtss/d(my mistake 😞), so revoked the change on cvtsi2ss/d.
Passed all the tests. Could you please merge this PR?

[CarolEidt]

LGTM Thanks!
