Add ZipDirectory and Unzip tasks by jeffkl · Pull Request #3291 · dotnet/msbuild

jeffkl · 2018-05-09T20:43:40Z

ZipDirectory task zips up a whole directory. It will fail if the destination file already exists. Zipping individual files is a lot harder because you have to calculated a base path for all files and make zip entries relative to that. The code in the CLR that does this is very efficient by reusing string buffers and I didn't want to have to replicate the code. So for now there's only ZipDirectory instead of a more generic Zip.

Unzip unzips files from an archive to a directory.

Defaults to skip unzipping files that are already up-to-date
Logs every file that was unzipped
Supports cancellation
Supports overwriting read-only files
Supports unzipping multiple files to the same directory

Fixes #1781

AndyGerlicher · 2018-05-10T20:35:28Z

Do we always want this? Seems like it could be a giant list in some cases and use up a lot of memory and may or may not be needed? The output folder might be enough?

Its what <Copy /> does so I though I'd ... 😑 ... 😎 copy it.

Technically you could copy a ton of files as well

<ItemGroup> <Files Include="Folder\**" /> </ItemGroup> <Copy SourceFiles="@(Files)" DestinationFolder="Foo" />

And we'll waste all of the memory. What should I do?

@jeffkl Would it save memory to make _unzippedFiles and _destinationFiles a collection of tuples of sourceTaskItem and destinationPath.FullName? That way if you access the output properties DestinationFiles or UnzippedFiles you could build the full list of TaskItems on demand?

We decided to just remove it. If necessary, we can add the functionality later.

rainersigwald · 2018-05-14T15:38:44Z

I'm a bit worried about this interface. It's pretty much impossible to get correct incremental behavior out of this. You'd have to:

Enumerate the contents of the folder just before the target that invokes ZipDirectory.

Additionally compute a hash of those items to avoid the removed-an-input problem.

Use the new stuff in the target that calls this.

Accepting Item[] would be more complex in implementation but easier to make correct.

I discussed this with @AndyGerlicher and we're concerned more about the complexity required to make it incremental out-of-the-box. So we're going to leave it as-is.

I think if we wrote a target that used this we would need to make it incremental. But given that it zips a directory, it doesn't seem worth the complexity to implement at the task level. It might be worth writing a sample in the docs page that is a target that zips your output folder that would be incremental as an example.

rainersigwald · 2018-05-14T15:42:14Z

Does this not deserve an Overwrite param?

rainersigwald · 2018-05-14T15:42:50Z

Why not just create? Didn't we make something create instead of erroring in this situation fairly recently?

This is the directory to zip up, so it must exist

Yes, that . . . is definitely true 😬

rainersigwald · 2018-05-14T15:44:40Z

Do you think this is sufficiently long-running/IO intensive that we should Yield() here?

Yeah the zip file could contain a large file, I'll add it

rainersigwald · 2018-05-14T15:46:53Z

Is this used?

I was at one point, good catch

rainersigwald · 2018-05-14T15:49:39Z

Worth using the CopyToAsync overload that takes a CancellationToken to speed up canceling if we're stuck in a huge file? Possibly not . . .

rainersigwald · 2018-05-14T15:52:46Z

Make this a CancellationTokenSource instead and pass around a CancellationToken?

jeffkl · 2018-05-15T14:01:08Z

@Microsoft/msbuild-maintainers this is ready for final review

rainersigwald · 2018-05-15T14:37:06Z

Don't forget to manually port these to the internal VS repo after this merges.

rainersigwald · 2018-05-15T14:39:34Z

Use

[PlatformSpecific(TestPlatforms.Windows)]

instead.

cdmihai · 2018-05-16T22:15:59Z

Why not eagerly exit to reduce the time it takes to finish the build on error?

Ah, to show all errors at once rather than one at a time. The alternative is to complicate things and check everything first, and do the extraction second.

In reply to: 188788554 [](ancestors = 188788554)

cdmihai · 2018-05-16T22:18:56Z

Shouldn't Reacquire be in a finally block? Or does the engine handle this?

cdmihai · 2018-05-16T22:28:33Z

What happens if there's files in multiple archives with the same path? Should there be an option to warn or error about this?

I think its okay to just ignore it, do you want me to log something?

I guess people can use the diagnostic log to see the task inputs, so I guess they already have insight into the sources.

cdmihai · 2018-05-16T22:31:17Z

Should it be made readonly after the write to preserve user data? :)

I'm not sure. I'd assume that if the file is readonly in the archive it should be readonly after extraction but I don't see attributes like that in the ZipArchiveEntry class... It seems a little weird to be setting the readonly attribute based on what the file used to have. Thoughts?

cdmihai · 2018-05-16T22:32:36Z

nit: named constant for the buffer size.

cdmihai · 2018-05-16T22:37:36Z

The other task wraps each IO in a try catch. Should this one be wrapped too?

cdmihai · 2018-05-16T22:55:13Z

Shouldn't the returned task be awaited before the entire task returns?

cdmihai · 2018-05-16T22:58:20Z

Curious what happens if another file exists in the destination and is longer than the archive entry. Does this override or does it just copy over the source stream, leaving some trailing bytes from the destination? The CopyTo documentation is a bit unclear on this.

Oh, did not notice the FileMode.Create. Nevermind.

In reply to: 188796551 [](ancestors = 188796551)

Add unit tests for Unzip

rainersigwald · 2018-05-21T15:03:12Z

`Copy` doesn’t restore the RO bit, so I’d say don’t do it here either.

jeffkl · 2018-05-22T15:25:53Z

@cdmihai can you please review my changes to address your comments? I think this is ready to merge but wanted to make sure you were happy.

cdmihai · 2018-05-22T16:33:05Z

+        [Required]
+        public ITaskItem SourceDirectory { get; set; }
+
+        public override bool Execute()


Can you please make this yieldable as well?

natemcmaster · 2018-05-22T20:48:21Z

+        {
+            foreach (ZipArchiveEntry zipArchiveEntry in sourceArchive.Entries.TakeWhile(i => !_cancellationToken.IsCancellationRequested))
+            {
+                FileInfo destinationPath = new FileInfo(Path.Combine(destinationDirectory.FullName, zipArchiveEntry.FullName));

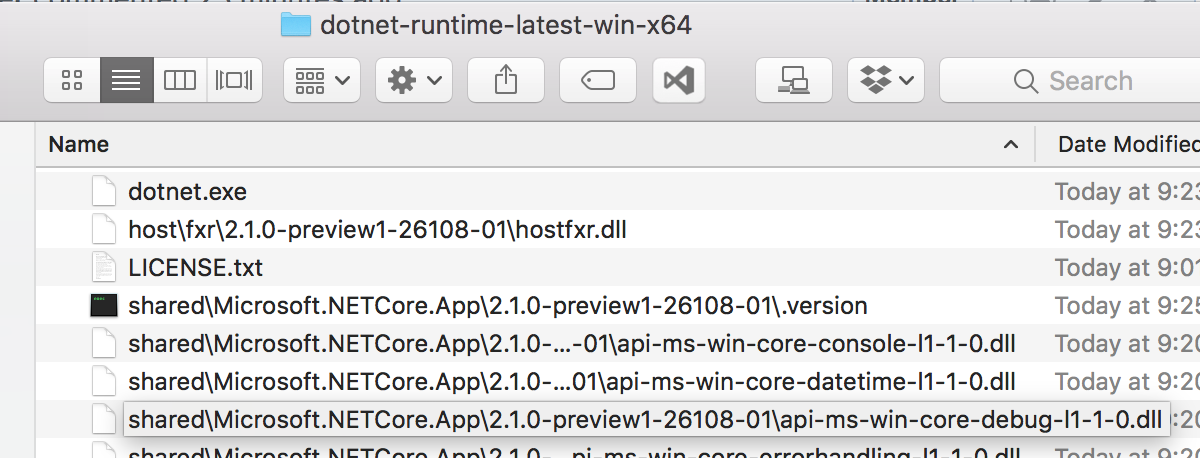

Sorry to comment after you've just merged, but would you consider normalizing directory separators? One of the most common errors I've encountered is that zips created on Windows using \ as a directory separator will not extract correctly on Linux/macOS. Instead \ becomes part of the filename.

This common error is something we worked around in the unzip task used in the .NET Core build system: see https://github.com/dotnet/arcade/blob/0d117c0b3649565a6d9aacf9f435e29ab67c3c0d/src/Microsoft.DotNet.Build.Tasks.IO/src/UnzipArchive.cs#L64-L76

jeffkl · 2018-05-22T20:51:06Z

@natemcmaster I'll double check but I think my unit tests cover that scenario.

Flithor · 2023-11-04T07:34:45Z

+                try
+                {
+                    Log.LogMessageFromResources(MessageImportance.High, "ZipDirectory.Comment", sourceDirectory.FullName, destinationFile.FullName);
+                    ZipFile.CreateFromDirectory(sourceDirectory.FullName, destinationFile.FullName);


I think need make the "includeBaseDirectory" argment as an option
