fix: Fail roll forward .NET Core 3.x -> .NET 5.0 by RussKie · Pull Request #2923 · dotnet/winforms

RussKie · 2020-02-28T06:46:55Z

As part of consolidation initiative (refer to #2781) we have merged System.Windows.Forms.Design.Editors.dll into System.Windows.Forms.Design.dll.

However doing so we broke roll-forward upgrades for any app depending on types declared in System.Windows.Forms.Design.Editors.dll.

Resolves #2921.

Proposed changes

Create a facade assembly that forwards types from original assembly.

Customer Impact

Customers can roll forward from .NET Core 3.x to .NET 5.0

Regression?

Yes

Test methodology

Use the repro app or generate a new Windows Forms app targeting .NET Core 3.0 (or 3.1) and set it to rollforward:
```
{
  "sdk": {
    "rollForward": "major"
  }
}
```

Add the following line to Form1:

AnchorEditor editor = new AnchorEditor();

Ensure no .NET Core 3.x runtime is installed. Best to run a VM with only .NET5 Preview1 installed

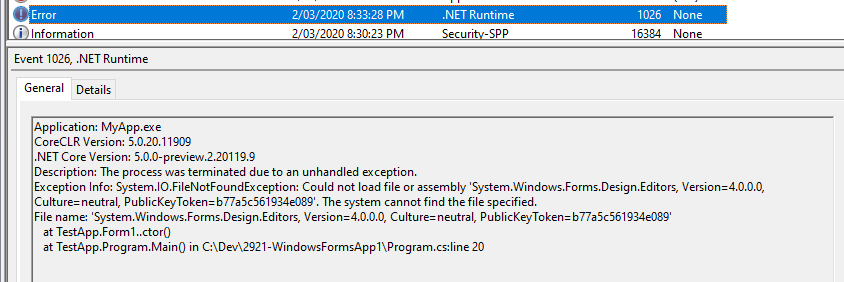

Run the app, observe the failure:
Build the current commit with pack option:
```
PS> .\build.ps1 -pack
```
Copy System.Windows.Forms.Design.Editors.dll
- from .\artifacts\packages\Debug\NonShipping\Microsoft.Private.Winforms.5.0.0-dev.nupkg\lib\netcoreapp5.0 --> C:\Program Files\dotnet\shared\Microsoft.WindowsDesktop.App\5.0.0-preview.2.20119.5
- from .\artifacts\packages\Debug\NonShipping\Microsoft.Private.Winforms.5.0.0-dev.nupkg\ref\netcoreapp5.0 --> C:\Program Files\dotnet\packs\Microsoft.WindowsDesktop.App.Ref\5.0.0-preview.2.20119.5\ref\netcoreapp5.0

Update the WindowsDesktop manifest to include the new assembly:

--- a/C:/Program Files/dotnet/shared/Microsoft.WindowsDesktop.App/5.0.0-preview.2.20119.5/Microsoft.WindowsDesktop.App.deps.json
+++ b/C:/Program Files/dotnet/shared/Microsoft.WindowsDesktop.App/5.0.0-preview.2.20119.5/Microsoft.WindowsDesktop.App.deps.json
          "runtimes/win-x64/lib/netcoreapp5.0/System.Windows.Forms.Design.dll": {
            "assemblyVersion": "5.0.0.0",
            "fileVersion": "5.0.20.11805"
          },
+         "runtimes/win-x64/lib/netcoreapp5.0/System.Windows.Forms.Design.Editors.dll": {
+           "assemblyVersion": "5.0.0.0",
+           "fileVersion": "5.0.20.11805"
+         },
          "runtimes/win-x64/lib/netcoreapp5.0/System.Windows.Forms.Primitives.dll": {
            "assemblyVersion": "5.0.0.0",
            "fileVersion": "5.0.20.11805"
          },

Re-run the app, observe the app start

Microsoft Reviewers: Open in CodeFlow

As part of consolidation initiative (refer to dotnet#2781) we have merged System.Windows.Forms.Design.Editors.dll into System.Windows.Forms.Design.dll. However doing so we broke roll-forward upgrades for any app depending on types delcared in System.Windows.Forms.Design.Editors.dll. Create a facade assembly that forwards types from original assembly. Resolves dotnet#2921.

RussKie · 2020-02-28T06:52:28Z

Winforms.sln

 		.editorconfig = .editorconfig
 	EndProjectSection
 EndProject
+Project("{9A19103F-16F7-4668-BE54-9A1E7A4F7556}") = "System.Windows.Forms.Design.Editors.Facade3x", "src\System.Windows.Forms.Design.Editors\src\System.Windows.Forms.Design.Editors.Facade3x.csproj", "{E0681991-228A-420E-85D5-A9E796F0AAE0}"


Need a difference "Facade" name for the purpose of having a different set of contract references to .NET Framework.
Naming-wise I was split between System.Windows.Forms.Design.Editors.Facade3x and System.Windows.Forms.Design.Editors.Facade.3x. Happy to change if you think the second one is better.

codecov · 2020-02-28T07:05:48Z

Codecov Report

Merging #2923 into master will decrease coverage by 0.0023%.
The diff coverage is n/a.

@@                 Coverage Diff                 @@
##              master       #2923         +/-   ##
===================================================
- Coverage   60.22621%   60.22391%   -0.00231%
===================================================
  Files           1248        1248
  Lines         433396      433396
  Branches       38850       38850
===================================================
- Hits          261018      261008         -10
- Misses        167006      167010          +4
- Partials        5372        5378          +6

Flag	Coverage Δ
#Debug	`60.22391% <ø> (-0.00231%)`	⬇️
#production	`32.4199% <ø> (-0.00396%)`	⬇️
#test	`98.96294% <ø> (ø)`	⬆️

vatsan-madhavan · 2020-02-28T16:48:24Z

Is rollForward from 3 -> 5 supported, or are you doing this as a best-effort solution ?

weltkante · 2020-02-28T17:48:20Z

Is rollForward from 3 -> 5 supported

This probably still needs a decision, some of the changes beeing considered for 5.0 won't be compatible with roll forward, see my notes in the issue (#2921)

vatsan-madhavan · 2020-02-28T18:39:41Z

@ericstj perhaps knows more?

RussKie · 2020-03-02T06:18:24Z

The main driving force behind this PR is to unblock the Designer which is currently unable to resolve type editors/converters previously located in System.Windows.Forms.Design.Editors assembly.

Is rollForward from 3 -> 5 supported, or are you doing this as a best-effort solution ?

It is a best-effort only.
I think with the current API surface it should be possible to roll forward (with this fix and #2932) if an app doesn't rely on any deprecated API (e.g. #2798 and #2157).

RussKie · 2020-03-03T05:02:01Z

I run tests and verified the fix. Added test methodology section to the description.

@dagood I couldn't find how Microsoft.WindowsDesktop.App.runtimeconfig.json gets generated. Is this done by WindowsDesktop project?
I just want to confirm my test procedure wasn't completely wrong, and the new assembly will automagically end up in the config.

ericstj · 2020-03-03T14:20:49Z

Is rollForward from 3 -> 5 supported

The library ecosystem will need to continue working. That is the nature of TFMs.

Apps won’t roll forward by default but nothing prevents an app author from making the choice to roll forward.

Cc @PriyaPurkayastha

PriyaPurkayastha · 2020-03-03T19:05:10Z

Yes, starting .NET Core 3.0, rollForward for major versions is supported. Actually this is how we perform compat testing in the AppCompat lab where we opt-in to major version upgrade (.NET 5) for 2.x/3.x apps.

AdamYoblick

I tested this on a VM and the roll forward seems to be working just fine with these changes. We just need to make sure the WindowsDesktop.App.deps.json gets generated correctly once these changes flow into the WindowsDesktop build.

RussKie · 2020-03-03T23:18:01Z

I'm going to merge it as I don't believe there is anything else to do in this repo.
The manifest belongs to WindowsDesktop, so if it doesn't get updated we'll deal with it there.

dagood · 2020-03-10T18:05:07Z

I couldn't find how Microsoft.WindowsDesktop.App.runtimeconfig.json gets generated. Is this done by WindowsDesktop project?

Yes, here: https://github.com/dotnet/arcade/blob/3679f317fe2e94ce0173ac4955718cd6a4475e7b/src/Microsoft.DotNet.Build.Tasks.SharedFramework.Sdk/targets/framework.sharedfx.targets#L71-L100

As for Microsoft.WindowsDesktop.App.deps.json (I think you're really asking about this?), it's generated via the SDK Publish target, so I'd expect this DLL to get added automatically there: https://github.com/dotnet/arcade/blob/3679f317fe2e94ce0173ac4955718cd6a4475e7b/src/Microsoft.DotNet.Build.Tasks.SharedFramework.Sdk/targets/framework.sharedfx.targets#L284

As part of consolidation initiative (refer to dotnet#2781) we have merged System.Windows.Forms.Design.Editors.dll into System.Windows.Forms.Design.dll. However doing so we broke roll-forward upgrades for any app depending on types delcared in System.Windows.Forms.Design.Editors.dll. Create a facade assembly that forwards types from original assembly. Resolves dotnet#2921.
