Update Maps SDK with MAS 3.0 #697

danesfeder · 2018-02-12T22:02:35Z

Closes #891 Closes #880 Closes #837 Closes #746

Currently not compiling due to a dex error with something related to offline

cc @osana @cammace (for 👀 on the NavigationMapRoute code)

danesfeder · 2018-02-12T22:04:41Z

@tobrun any ideas here?

Error:com.android.builder.dexing.DexArchiveBuilderException: Failed to process /Users/danesfeder/.gradle/caches/transforms-1/files-1.1/mapbox-android-sdk-6.0.0-SNAPSHOT.aar/0db8873ff2b10dc56820a1208701e197/jars/classes.jar

Error:com.android.builder.dexing.DexArchiveBuilderException: Error while dexing com/mapbox/mapboxsdk/offline/OfflineRegion$2.class

Error:com.android.dx.cf.code.SimException: invalid opcode ba (invokedynamic requires --min-sdk-version >= 26)```

danesfeder · 2018-02-12T22:43:46Z

Found the issue:

  compileOptions {
    sourceCompatibility JavaVersion.VERSION_1_8
    targetCompatibility JavaVersion.VERSION_1_8
  }

Needed to be added to the test app.

tobrun · 2018-03-13T07:10:21Z

...-ui/src/main/java/com/mapbox/services/android/navigation/ui/v5/route/NavigationMapRoute.java

+        PropertyFactory.iconImage(match(
+          get("waypoint"),
+          literal("originMarker"), literal("stop"), literal("originMarker"),
+          literal("destination"), literal("destinationMarker")


This conversion doesn't seem correct:

match(
get("waypoint"),
literal("origin"), literal("originMarker"),
literal("destination"), literal("destinationMarker"),
literal("defaultOutputIfAboveDoesntMatch")
)

danesfeder

Looks good so far - after talking with @Guardiola31337, we need to keep this PR up to date with master, while we wait for the libraries that libandroid-navigation-ui depend on to be released. Currently, this PR is using specific SNAPSHOTS in order to build correctly. Biggest piece left here, imo, is removing all of the telem hardcoded values with the proper methods from the telem library.

danesfeder · 2018-03-13T18:10:05Z

app/src/main/java/com/mapbox/services/android/navigation/testapp/MainActivity.java

 public class MainActivity extends AppCompatActivity implements PermissionsListener {

+  // TODO Check and remove if not necessary
  private static final String[] PERMISSIONS = {Manifest.permission.ACCESS_FINE_LOCATION,


Confirmed: can be removed 👍

danesfeder · 2018-03-13T18:20:10Z

...ain/java/com/mapbox/services/android/navigation/testapp/activity/MockNavigationActivity.java

      mapboxMap.moveCamera(CameraUpdateFactory.newLatLngZoom(latLng, 12));
-      mapboxMap.setMyLocationEnabled(true);
-      mapboxMap.getTrackingSettings().setMyLocationTrackingMode(MyLocationTracking.TRACKING_FOLLOW);
+      // TODO Check and remove if not necessary


Confirmed deprecated code: can be removed 👍

danesfeder · 2018-03-13T18:22:47Z

...ain/java/com/mapbox/services/android/navigation/testapp/activity/MockNavigationActivity.java

  private void calculateRoute() {
-    Location userLocation = mapboxMap.getMyLocation();
+    // TODO Check
+    Location userLocation = locationEngine.getLastLocation();


Confirmed this is good to replace 👍

danesfeder · 2018-03-13T18:27:11Z

...ain/java/com/mapbox/services/android/navigation/v5/navigation/NavigationEventDispatcher.java

    navigationEventListeners = new ArrayList<>();
    milestoneEventListeners = new ArrayList<>();
-    progressChangeListeners = new ArrayList<>();
+    progressChangeListeners = new CopyOnWriteArrayList<>();


Let's do the same for the rest of the lists, great catch here 💯

danesfeder · 2018-03-13T18:38:52Z

...roid-navigation/src/main/java/com/mapbox/services/android/navigation/v5/utils/MathUtils.java

+package com.mapbox.services.android.navigation.v5.utils;
+
+
+// TODO Check and remove if not necessary


If we are using these methods in the nav SDK and they are no longer provided by the libraries we are using, let's add them to our utils

danesfeder · 2018-03-13T22:29:24Z

@Guardiola31337 taking a look at the map route changes and found that the start/end points are missing now in this branch:

tobrun · 2018-03-13T23:26:26Z

...-ui/src/main/java/com/mapbox/services/android/navigation/ui/v5/route/NavigationMapRoute.java

-            stop("destination", PropertyFactory.iconImage("destinationMarker"))
+        PropertyFactory.iconImage(match(
+          get("waypoint"),
+          literal("originMarker"), literal("originMarker"),


the first originMarker should be "origin"

tobrun · 2018-03-13T23:27:11Z

...-ui/src/main/java/com/mapbox/services/android/navigation/ui/v5/route/NavigationMapRoute.java

+          get("waypoint"),
+          literal("originMarker"), literal("originMarker"),
+          literal("destination"), literal("destinationMarker"),
+          literal("defaultOutputIfAboveDoesntMatch")


it's better to actually assign a real icon id value for above, eg. originMarker

Guardiola31337 · 2018-04-11T17:58:01Z

While testing the integration noticed that routes are not drawn properly 👇

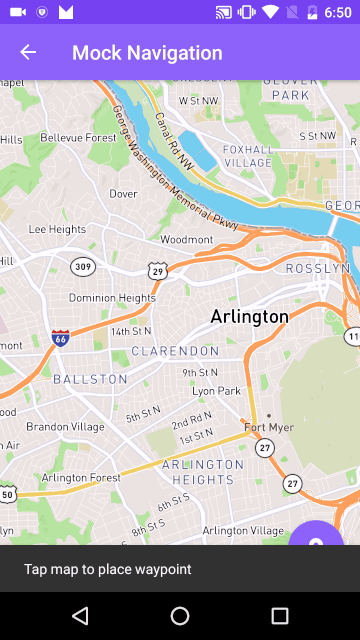

This is the MockNavigationActivity from the test app (tapping the map twice). Note that black color in the route after placing the second waypoint.

Comparing with master (Maps SDK 5.5.0 at the moment of writing) 👇

it seems that we're messing up with Expressions related code. Going to dig deeper. BTW, it'd be great @tobrun if you could take a look at it as well and let us know if you 👀 something missing or wrong. Thanks 🙏

tobrun · 2018-04-12T06:26:17Z

it seems that we're messing up with Expressions related code. Going to dig deeper. BTW, it'd be great @tobrun if you could take a look at it as well and let us know if you 👀 something missing or wrong. Thanks

A quick glance over the code found here didn't flag anything to me.
Could you specify/link which layer configuration is not working correctly?

Guardiola31337 · 2018-04-12T14:22:31Z

@tobrun

Could you specify/link which layer configuration is not working correctly?

We're adding the route layer to the map either using the custom style values or the default in NavigationMapRoute#addRouteLayer and the code in which we "paint" the traffic colors is

mapbox-navigation-android/libandroid-navigation-ui/src/main/java/com/mapbox/services/android/navigation/ui/v5/route/NavigationMapRoute.java

Lines 423 to 429 in 55139e0


           PropertyFactory.lineColor(match(

             get(CONGESTION_KEY),

             literal("moderate"), color(index == primaryRouteIndex ? routeModerateColor : alternativeRouteModerateColor),

             literal("heavy"), color(index == primaryRouteIndex ? routeSevereColor : alternativeRouteSevereColor),

             literal("severe"), color(index == primaryRouteIndex ? routeSevereColor : alternativeRouteSevereColor),

             color(index == primaryRouteIndex ? routeDefaultColor : alternativeRouteDefaultColor))

           )

We don't draw black on the route line at any time. Leading me to believe this is an issue with the Maps SDK or how we are using it.

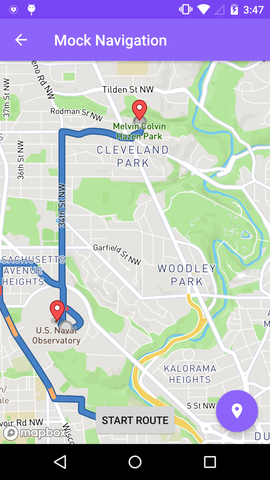

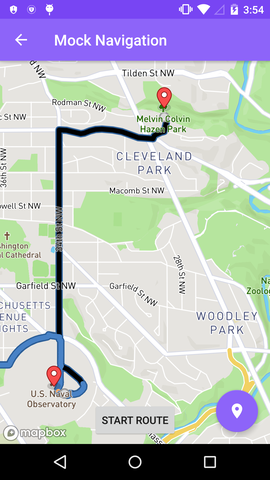

Route using Maps SDK 5.5.0 vs 6.0.0 👀

Any hints? Couldn't find anything wrong either 😞

Guardiola31337 · 2018-04-16T10:56:14Z

Noting here that when testing mapbox/mapbox-plugins-android#424 (comment) noticed some building conflicts 👀

* What went wrong:
Execution failed for task ':app:preDebugBuild'.
> Android dependency 'android.arch.lifecycle:runtime' has different version for the compile (1.0.3) and runtime (1.1.1) classpath. You should manually set the same version via DependencyResolution

We aren't using 1.1.1 (LLP included it in mapbox/mapbox-plugins-android#419) so in order to avoid them we needed to include implementation "android.arch.lifecycle:extensions:1.1.1" in the app's build.gradle file. We should fix it in the Nav side though (bumping the version). Ticket to follow.

tobrun · 2018-04-16T11:38:14Z

Note that with final release of LLP this shouldn't be an issue anymore, with mapbox/mapbox-plugins-android#419 we limited the scope of the included dependency.

Guardiola31337 · 2018-04-16T13:06:24Z

@tobrun

Note that with final release of LLP this shouldn't be an issue anymore, with mapbox/mapbox-plugins-android#419 we limited the scope of the included dependency.

What do you mean with we limited the scope of the included dependency?

I think this will be an issue in the Nav side (when including LLP final release dependency) until #864 gets addressed.

danesfeder · 2018-04-16T15:51:46Z

@Guardiola31337 I'd look at NavigationMapRoute#generateFeatureCollectionList. I'm wondering if the issue with the route line has to do with how we generate the features a second time, or with waypoints.

Guardiola31337 · 2018-04-28T00:11:01Z

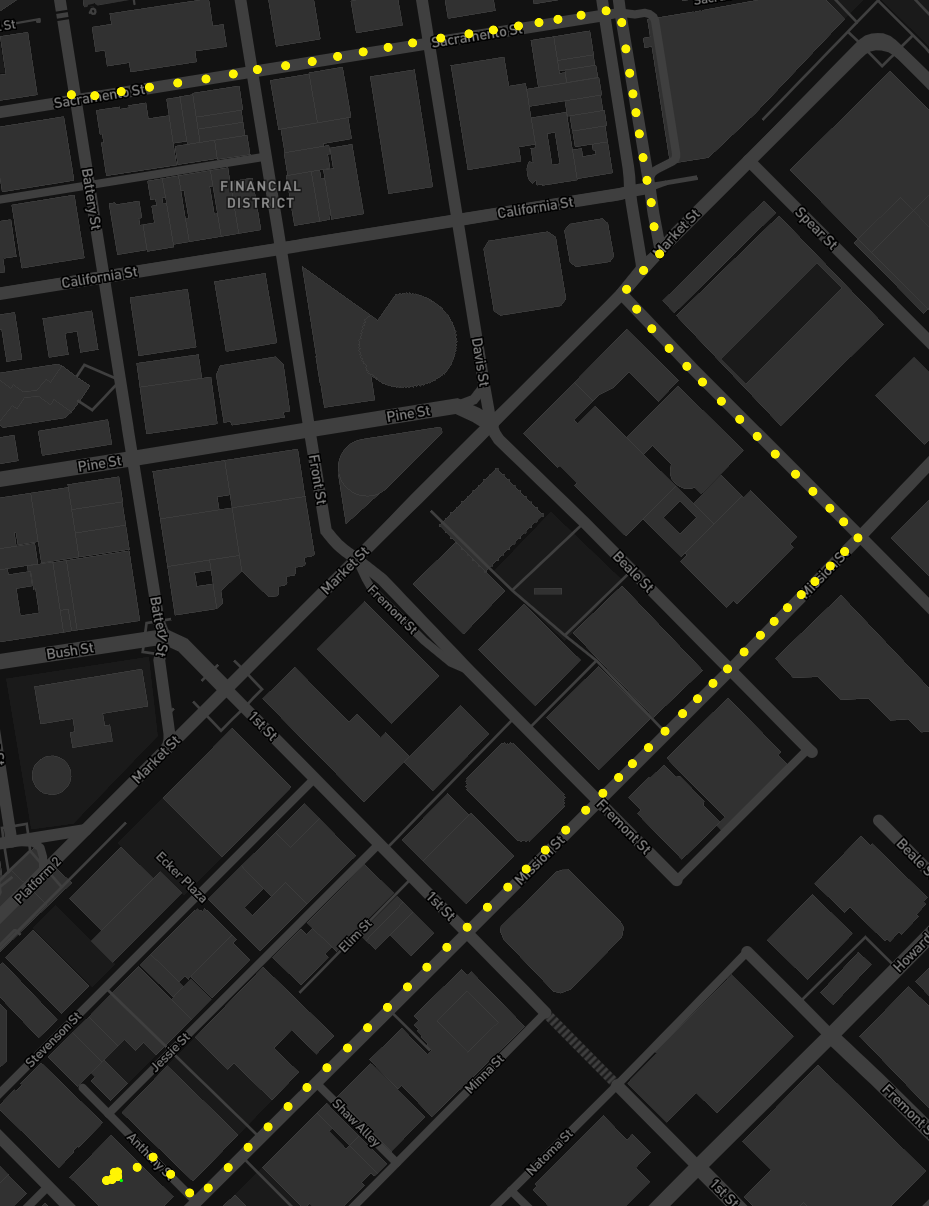

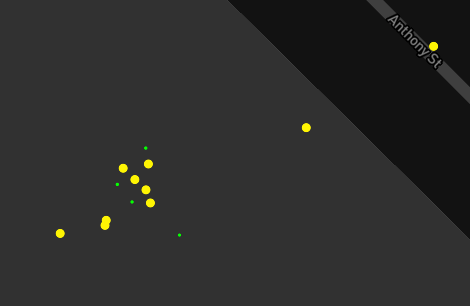

Green 👉 New implementation
Yellow 👉 Old implementation

In terms of numbers we're getting 99 events with the old implementation whereas 95 events with the new implementation. Above the green points can't be seen because they're right under the yellow ones (i.e. same exact location). As you can see below the differences only happened at the beginning right before starting the navigation session.

Here we're only 🕵️ the location events, it'd be great to do the same with the Nav-related events.

BTW, based on what we're 👀 with the location events seems legit to go ahead and merge the PR. We can revisit/continue analyzing the navigation events later.

cc @danesfeder @zugaldia
