[MRG] Deprecate EDF #5741

massich · 2018-11-22T10:05:54Z

Things that need to happen:

load edf files with annotations, and find events
new deprecation messages
remove 'EDF Annotations' channel

Nice to have:

preload=false, loads the annotations but not the data.

mne/io/edf/tests/test_edf.py

codecov · 2018-11-22T11:16:54Z

Codecov Report

Merging #5741 into master will decrease coverage by 0.02%.
The diff coverage is 94.3%.

@@            Coverage Diff             @@
##           master    #5741      +/-   ##
==========================================
- Coverage   88.55%   88.53%   -0.03%
==========================================
  Files         369      369
  Lines       69139    68955     -184
  Branches    11638    11614      -24
==========================================
- Hits        61228    61048     -180
- Misses       5046     5048       +2
+ Partials     2865     2859       -6

massich · 2018-11-26T16:34:11Z

mne/io/edf/edf.py

        cals = np.append(cals, 1)
-    if stim_channel is not None:
-        stim_channel = _check_stim_channel(stim_channel, ch_names, sel)
+    stim_channel = _check_stim_channel(stim_channel, ch_names, sel)


All this could be change by just chekcing if any of the valid stim keywords is present in ch_names

mne/io/edf/edf.py

massich · 2018-11-27T17:53:59Z

mne/io/edf/tests/test_gdf.py

+    # # Test for stim channel
+    # events = find_events(raw, shortest_event=1)
+    # # The events are overlapping.
+    # assert_array_equal(events[:, 0], raw._raw_extras[0]['events'][1][::2])


This shows, that actually there are events in gdf1_path and these should be their onsets:

ipdb> raw._raw_extras[0]['events'][1][::2] array([ 5127, 5697, 5728, 5850, 5936, 5957, 5992, 6059, 6084, 6132, 6165, 6256, 6389, 6423, 6459, 6572, 6657, 6706, 6740, 6805, 6833, 6857, 6951, 6982, 7008, 7043, 7139, 7205, 7314, 7434, 7474, 7540, 7607, 7636, 7660, 7686, 7788, 7844, 7879, 7911, 8050, 8089, 8128, 8196, 8257, 8281, 8308, 8349, 8373, 8415, 8458, 8496, 8582, 8620, 8644, 8711, 8737, 8780, 8904, 8935, 8979, 9014, 9107, 9152, 9247, 9275, 9392, 9457, 9512, 9556, 9667, 9729, 9755, 9853, 9939, 9968, 10045, 10153, 10290, 10357, 10413, 10504, 10567, 10642, 10666, 10708, 10738, 10845, 10896, 10945, 11042, 11109, 11220, 11246, 11291, 11335, 11385, 11931, 11974, 12026, 12093, 12168, 12199, 12264, 12346, 12398, 12515, 12564, 12590, 12625, 12738, 12762, 12803, 12848, 12873, 12939, 12980, 13010, 13075, 13147, 13186, 13219, 13247, 13298, 13328, 13355, 13400, 13466, 13497, 13569, 13594, 13656, 13727, 13764, 13798, 13821, 13844, 13896, 13946, 14012, 14087, 14198, 14335, 14384, 14458, 14509, 14531, 14556, 14614, 14673, 14752, 14819, 14854, 14877, 14930, 14956, 14989, 15009, 15052, 15142, 15186, 15207, 15287, 15354, 15386, 15416, 15453, 15488, 15589, 15675, 15760, 15785, 15860, 15890, 15918, 15984, 16014, 16086, 16203, 16280, 16366, 16458, 16486, 16574, 16602, 16721, 16746, 16812, 16888, 16920, 17009, 17058, 17126, 17673, 17752, 17776, 17810, 17944, 18034, 18106, 18138, 18212, 18236, 18358, 18388, 18418, 18448, 18474, 18528, 18552, 18582, 18655, 18698, 18732, 18813, 18898, 18930, 18955, 19062, 19115, 19200, 19334, 19363, 19430, 19484, 19516, 19551, 19589, 19616, 19649, 19726, 19752, 19796, 19922, 19950, 20024, 20045, 20091, 20212, 20240, 20295, 20319, 20350, 20393, 20487, 20594, 20647, 20715, 20748, 20776, 20845, 20878, 20912, 20978, 21010, 21048, 21152, 21187, 21212, 21279, 21304, 21336, 21366, 21428, 21468, 21552, 21658, 21733, 21772, 21869, 21895, 21960, 21985, 22018, 22087, 22156, 22178, 22208, 22259, 22307, 22447, 22472, 22512, 22578, 22612, 22658, 22741, 22817, 22838, 23388, 23416, 23491, 23523, 23546, 23657, 23724, 23850, 23968, 24060, 24178, 24314, 24397, 24468, 24493, 24529, 24557, 24585, 24654, 24677, 24739, 24847, 24876, 24927, 24957, 24984, 25027, 25072, 25131, 25172, 25239, 25272, 25386, 25470, 25581, 25618, 25645, 25667, 25703, 25752, 25782, 25810, 25876, 25908, 25954, 26032, 26076, 26098, 26160, 26185, 26304, 26334, 26386, 26411, 26478, 26530, 26570, 26618, 26653, 26716, 26748, 26877, 26906, 26985, 27032, 27057, 27125, 27263, 27293, 27420, 27476, 27505, 27544, 27565, 27596, 27628, 27650, 27692, 27757, 27854, 27962, 28058, 28080, 28141, 28165, 28311, 28333, 28374, 28477, 28511, 28576, 28608, 28720, 28785, 28868, 28913, 29462, 29489, 29579, 29698, 29767, 29790, 29862, 29946, 30009, 30033, 30062, 30108, 30176, 30213, 30236, 30261, 30304, 30325, 30392, 30413, 30479, 30535, 30563, 30585, 30629, 30690, 30718, 30786, 30844, 30974, 31042, 31079, 31161, 31215, 31236, 31270, 31292, 31367, 31392, 31420, 31454, 31478, 31546, 31621, 31752, 31824, 31867, 31907, 31932, 31975, 32024, 32054, 32128, 32157, 32223, 32250, 32286, 32312, 32348, 32442, 32519, 32587, 32610, 32634, 32705, 32798, 32864, 32907, 32993, 33037, 33146, 33180, 33248, 33308, 33333, 33363, 33476, 33500, 33564, 33591, 33637, 33741, 33813, 33841, 33990, 34101, 34176, 34207, 34298, 34323, 34398, 34455, 34483, 34534, 34565, 34609, 34880], dtype=uint32)

however, I cannot see to which channel these events should be encoded:

ipdb> raw._raw_extras[0]['ch_names'] ['FP1', 'FP2', 'F5', 'AFz', 'F6', 'T7', 'Cz', 'T8', 'P7', 'P3', 'Pz', 'P4', 'P8', 'O1', 'Oz', 'O2']

Any idea ??

#4205 cc: @nbara

what do we do with this?

@massich The file in question was provided by @alexandrebarachant in #2136, I am not sure what events it should contain beyond those that were found in the unit test previously.

however, I cannot see to which channel these events should be encoded

IIRC the GDF format supports passing events as annotations without a physical stim/trigger/status channel, so that could explain why you find events in the file.

Yes, events in GDF are usually stored in a separate event table and not in a channel.

massich · 2018-11-27T18:22:29Z

mne/io/edf/edf.py

        # actually one of the requested channels
-        idx = np.arange(self.info['nchan'])[idx]  # slice -> ints
-        read_size = len(r_lims) * buf_len
+        _idx = np.arange(self.info['nchan'])[idx]  # slice -> ints


This was overwriting the idx parameter that was actually needed by the scaling.

data *= cal.T[idx] data += offsets[idx] data *= gains.T[idx]

I don't think you need this change. It should have worked fine as it is, this just converts it from a slice to an array of int, which should allow for things like np.where(idx == stim_channel) but otherwise work the same way in the operations you had above.

mne/io/edf/edf.py

agramfort · 2018-11-27T21:05:43Z

mne/io/edf/edf.py

+    #       - add it as self.annotations
+    #       - Repeat for all TAL channels (if Any file format allows for
+    #                                      multiple TAL annotations, as it
+    #                                      seems to indicate the old code.)


mne/io/edf/edf.py

agramfort · 2018-11-28T13:46:58Z

@alexandrebarachant may have done this for https://github.com/NeuroTechX/moabb can we check if we broke anything there? @alexandrebarachant do you have a minute to test?

massich · 2018-11-28T14:10:50Z

yes, I broke it. I'm fixing it. But if more people can test (and share) that would be awesome!

massich · 2018-11-28T14:19:47Z

There would be a subsequent PR improving the test suit etc.. tests would be able to be added.

massich · 2018-11-28T23:22:39Z

@larsoner can you take a look at this one?

cbrnr · 2018-11-29T07:27:35Z

I tested a couple of EDF/BDF (and one GDF) files and everything seems to work. Am I right that currently, we still keep the stim channel in EDF+ files with TAL channels as an analog channel? I think we could probably get rid of the analog channel in these cases.

Also please check out this EDF+ file from this website. The file contained in the ZIP file is called ma0844az_1-1+.edf. When I open it, I get a RuntimeWarning: Omitted 21 annotation(s) that were outside data range. raw = mne.io.read_raw_edf("ma0844az_1-1+.edf"). Only 20 out of the 40 annotations end up in raw.annotations, although other viewers correctly import all annotations.

Furthermore, the same website has a BDF+ file (which contains a TAL channel). Here, the TAL channel is not recognized, presumably because it is called "BDF Annotations" (and we only search for "EDF Annotations"). Maybe you can fix this as well.

massich · 2018-11-29T15:40:49Z

Ok. First of all, thanks a lot for the examples they bring light to some shady things. (+ I really loved the BDF. I think we should have the same file for all the formats we have)

Here follows, some tests and thougts.

EDF

Here we compare if master and the PR read the same things or not

def test_edf_compare_sotred_annotations_when_reading(recwarn):
    from mne.io.pick import channel_indices_by_type
    from mne import find_events

    raw = read_raw_edf(edf, preload=True)
    annot = read_annotations(edf)
    found_types = [k for k, v in
                   channel_indices_by_type(raw.info, picks=None).items()
                   if v]
    events = find_events(raw, shortest_event=1)

    print(f'\n Annotations load in read_raw_edf: {raw.annotations}')
    print(f'The read types are {found_types}')
    print(f'Annotations in the file {annot}')
    print(f'Having {events.shape[0]} evnts for {raw.get_data().shape[1]}'
          f' samples is a ratio of {events.shape[0]/raw.get_data().shape[1]}')

For master:

Annotations load in read_raw_edf: <Annotations  |  41 segments : a1+a2 (1), aanspreken (1), ademh (1)..., orig_time : 2005-09-15 10:18:42>
The read types are ['eeg', 'stim']
Annotations in the file <Annotations  |  41 segments : a1+a2 (1), aanspreken (1), ademh (1)..., orig_time : None>
Having 39 evnts for 363620 samples is a ratio of 0.00010725482646719103

For the PR case:

Annotations load in read_raw_edf: <Annotations  |  20 segments : a1+a2 (1), aanspreken (1), ademh (1)..., orig_time : 2005-09-15 10:18:42>
The read types are ['eeg', 'stim']
Annotations in the file <Annotations  |  41 segments : a1+a2 (1), aanspreken (1), ademh (1)..., orig_time : None>
Having 270100 evnts for 363620 samples is a ratio of 0.7428084263791871

I broke something. My guess is that the stim channel and the annotations represent the same data (39~=41) but something is really broken in the PR.
Plus, from the 41 annotations in the EDF file, 21 get kicked out 'cos they are out of the span of the raw object.

def test_edf_times(recwarn):
    raw = read_raw_edf(edf, preload=True)
    annot = read_annotations(edf)

    # Print annotation boundaries
    for name, a in [('raw.annotations', raw.annotations),
                    ('annot', annot)]:
        print(f'\nin {name} onsets go from {min(a.onset)}s to {max(a.onset)}s')
        print(f'which {max(a.onset)} < {raw.times[-1]}'
              f' is evaluated to {max(a.onset)<raw.times[-1]}')

For master:

in raw.annotations onsets go from 0.0s to 1800.0s
which 1800.0 < 1818.095 is evaluated to True

in annot onsets go from 0.0s to 1800.0s
which 1800.0 < 1818.095 is evaluated to True

For the PR case:

in raw.annotations onsets go from 0.0s to 1450.0s
which 1450.0 < 1454.476 is evaluated to True

in annot onsets go from 0.0s to 1800.0s
which 1800.0 < 1454.476 is evaluated to False

This suggest that there's something fishy, not with the annotations but in the reading of the sfreq.

BDF

Well, here is clear that 'BDF Annotations' is not picked as stim.

def test_plot_bdf_master(recwarn):
    from mne.io.pick import channel_indices_by_type
    from mne import find_events
    raw = read_raw_edf(bdf)
    # XXX: There's no read_annotations for bdf (only edf)
    # annot = read_annotations(bdf)
    found_types = [k for k, v in
                   channel_indices_by_type(raw.info, picks=None).items()
                   if v]
    # XXX: find_events with no stim channel would break in this PR
    # events = find_events(raw, shortest_event=1)

    print(f'\n Annotations load in read_raw_edf: {raw.annotations}')
    print(f'The read types are {found_types}')
    print(f'The shape of the data is {raw.get_data().shape}')
    print(f"Channel names in _raw_extras: {raw._raw_extras[0]['ch_names']}")

    my_scaling = {k: 'auto' for k in found_types}
    raw.plot(scalings=my_scaling)

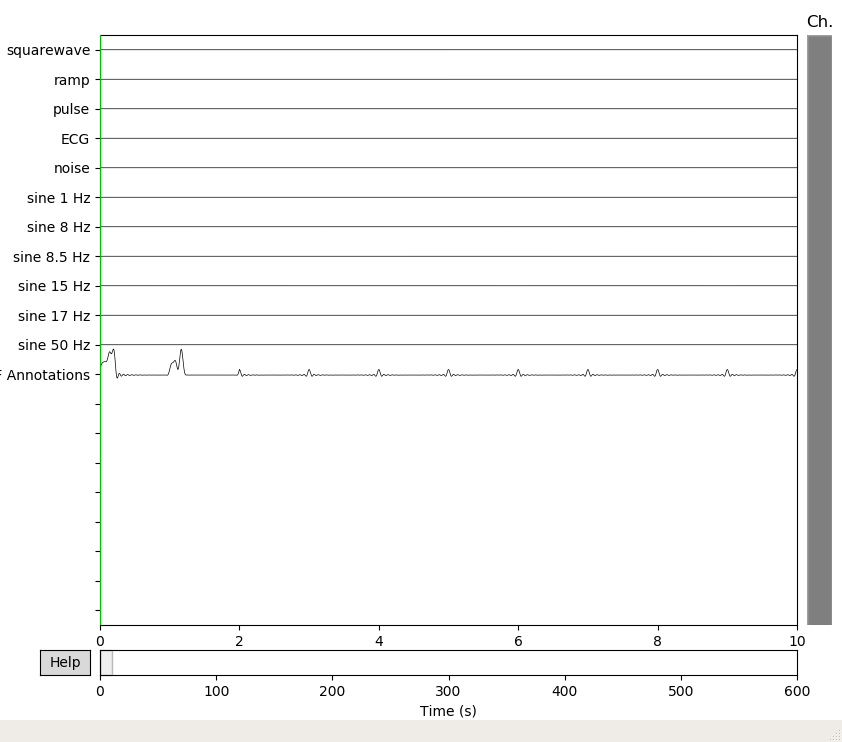

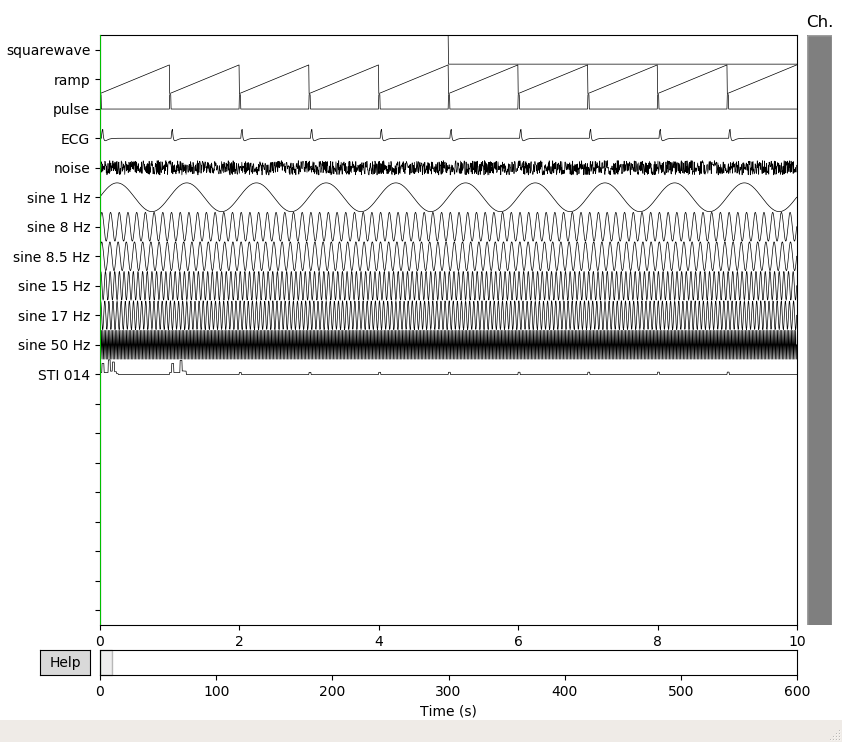

in master:

Annotations load in read_raw_edf: <Annotations  |  0 segments , orig_time : None>
The read types are ['eeg', 'stim']
The shape of the data is (12, 120000)
Channel names in _raw_extras: ['squarewave', 'ramp', 'pulse', 'ECG', 'noise', 'sine 1 Hz', 'sine 8 Hz', 'sine 8.5 Hz', 'sine 15 Hz', 'sine 17 Hz', 'sine 50 Hz', 'STI 014']

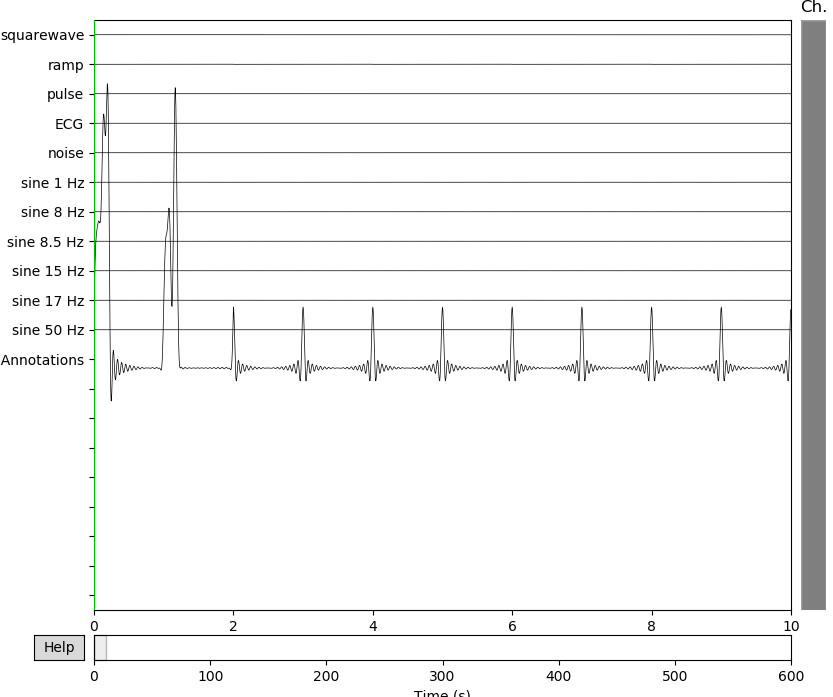

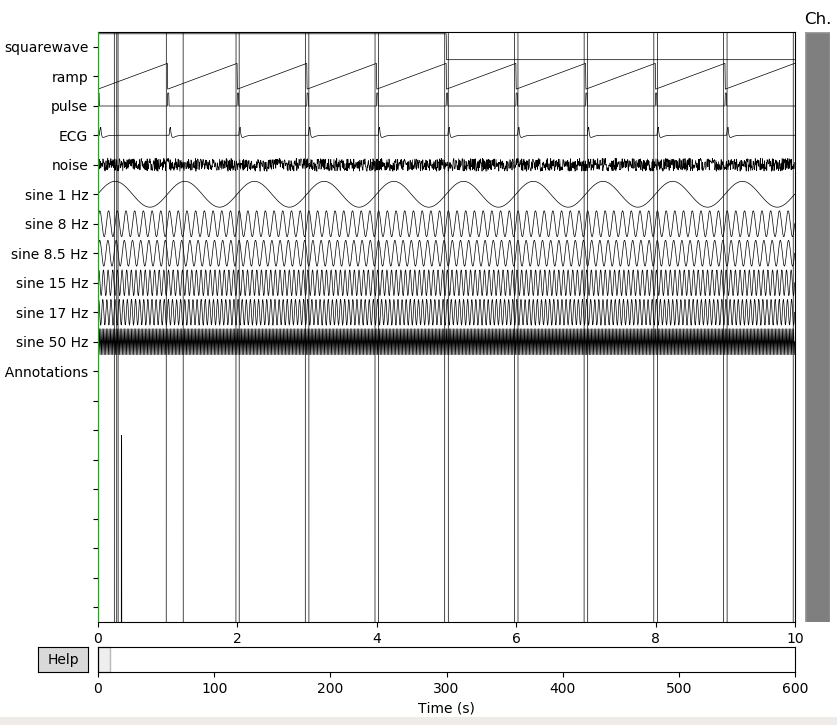

in PR:

Annotations load in read_raw_edf: <Annotations  |  0 segments , orig_time : None>
The read types are ['eeg']
The shape of the data is (12, 120000)
Channel names in _raw_extras: ['squarewave', 'ramp', 'pulse', 'ECG', 'noise', 'sine 1 Hz', 'sine 8 Hz', 'sine 8.5 Hz', 'sine 15 Hz', 'sine 17 Hz', 'sine 50 Hz', 'BDF Annotations']

So it does not realize that 'BDF Annotations' is a tal_ch despite the fact
that it does for our BDF file in the testing. Which it should 'cos the rule is that
it picks the last channel in edf_info (then
stored in raw._raw_extras) as the annotation channel.
It does not get picked up as a stim, and added to annotations (or stim) is just treated as eeg.

To sum up, I'm taking a look at all this.

cbrnr · 2018-11-30T06:47:27Z

Thanks @massich, let me know if I can help. The BDF issue should be easy to fix, you only need to add "BDF Annotations" to the list of valid TAL channel names. Maybe allow "EDF Annotations" only for EDF files and "BDF Annotations" only for BDF files.

massich · 2018-11-30T11:11:07Z

I think this is driving me crazy. 'BDF Annotations' in the example does not seem to follow the same annotations pattern.

Is there any dumping tool?

…ved for sel and read as annotations with the header/info

agramfort

+1 for MRG when CIs are happy

massich · 2018-12-17T14:56:18Z

@larsoner, @cbrnr can any of you give it a last look and merge if you are happy?

larsoner · 2018-12-17T14:57:19Z

I already commented a few minutes ago

larsoner · 2018-12-17T18:00:02Z

Thanks @massich !
