Provide a banal 'paste' postmessage implementation.

[mmeeks]

Browsers will allow apps to populate the clipboard, but not read
from it without user input. This patch makes it possible for
context menus with 'Paste' in them to trigger a real OS paste
when hosted inside the webview.

Signed-off-by: Michael Meeks michael.meeks@collabora.com

[tobiasKaminsky]

Can you give me steps how to test this?
I did this

• opened up a document within NC app
• long pressed on text to select it & copy it
• long pressed on a white area to paste it -> nothing happened
• edit -> insert text -> worked
  (but latest step also worked without this PR)

[mmeeks]

Hi Tobias,

On 01/07/2019 10:45, Tobias Kaminsky wrote: Can you give me steps how to test this? I did this * opened up a document within NC app * long pressed on text to select it & copy it

Great.

* long pressed on a white area to paste it -> nothing happened

So - you'll need an updated C'bra Online build that posts the PostMessage on paste at the right time to make that work - we're just doing some final testing on that. ATB, Michael.

…

-- michael.meeks@collabora.com <><, GM Collabora Productivity Hangout: mejmeeks@gmail.com, Skype: mmeeks (M) +44 7795 666 147 - timezone usually UK / Europe

[tobiasKaminsky]

So - you'll need an updated C'bra Online build that posts the PostMessage on paste at the right time to make that work - we're just doing some final testing on that.

Hm, but how/by whom is this postMessage triggered?
(just for understanding)

As this is not in official release, there is no need for backporting it to 3.7.

[tobiasKaminsky]

Please ping me, once there is a Collabora version, I can test (it can also be a docker tag/snapshot).

[tobiasKaminsky]

When I now try to long-press to select test, I get following:

[mmeeks]

Ah - this is easy; you need to double-tap to select text, not long-press =)

[tobiasKaminsky]

I did this on our collabora staging server:

• typed text
• double click on it
• select a snippet
• select copy
• go to a new line

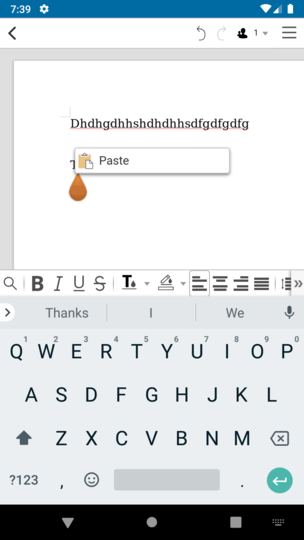

• long press -> paste

• at least on my emulator stock keyboard I cannot paste…

[mmeeks]

Any console output ? I wonder - it could be a cross-site origin issue - we attempt to post directly to the top window, which may cause concern. Thanks.

[tobiasKaminsky]

No meaningful error/info output.

On my OnePlus3 with Swiftkey I can use the keyboard to paste the text snippet.
Is this the desired way?

[mmeeks]

Sure, using the system paste functionality should work, this is primarily intended to make non-system paste work ie. via the context menus or menu -> edit -> paste. And you're sure you're using the updated/instrumented app ? - I'd be curious to know if the postmessage arrives of course. Thanks.

[tobiasKaminsky]

And you're sure you're using the updated/instrumented app ?

I am using the android app with this patch and collabora.nc (our staging server) for testing. This is correct, or?

[tobiasKaminsky]

@mmeeks @juliushaertl if you also want to test this, in this PR is a QR code where you can install the app as "nextcloud qa" in parallel to existing one.

[juliusknorr]

@mmeeks The android app doesn't use postmessages for the integration but a call to window.RichDocumentsMobileInterface.paste() on the top frame.

See https://github.com/nextcloud/richdocuments/blob/842d5f2ef665edabaed581701a849736adcfde5c/js/documents.js#L940-L959 for the richdocuments implementation

[tobiasKaminsky]

Tested together with @juliushaertl and @mmeeks and works 🎉

[nextcloud-android-bot]

IT test failed: https://www.kaminsky.me/nc-dev/android-integrationTests/10005

[nextcloud-android-bot]

IT test failed: https://www.kaminsky.me/nc-dev/android-integrationTests/10037

[AndyScherzinger]

@tobiasKaminsky doesn't this need another rebase and fixes in the score-file?

[tobiasKaminsky]

Yes, now that #4253 is merged, I'll do a rebase.

[AndyScherzinger]

@tobiasKaminsky there are two lint warnings:

Field requires API level 24 (current min is 21): android.view.KeyEvent#KEYCODE_PASTE

[tobiasKaminsky]

@mmeeks this is only possible for at least Nougat (Android 7), but RichDocuments/Collabora works with at least Lollipop (5.0).
Do you have an idea how we can support back to 5.0?
What does happen if I just do nothing on 5.0/6.0? Then pasting will just not work, or?

[mmeeks]

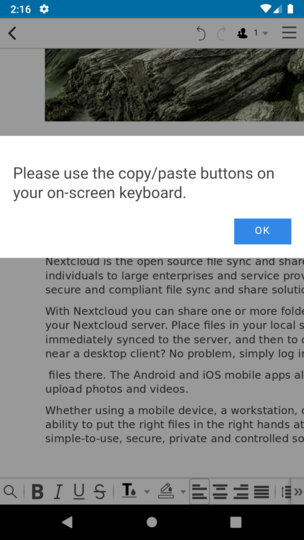

Ah - if we do nothing in older versions, then there will just be a popup saying "Please use a system paste button" or somesuch, which is fine - we can cope with that.

Ideally we would have an 'internal paste' option inside that dialog I guess.

Wrt. invoking a paste method dynamically, I guess there is a Java mechanism for that that will work if it is there (?) - but no expert; sorry for not noticing that.

[mmeeks]

Oh, and ... it is possible that there is a 'Paste Key' - that could be inserted instead. Oddly that may work just as well and be more compatible (?).

[tobiasKaminsky]

I only found https://developer.android.com/guide/topics/text/copy-paste#PastePlainText, but this is for accessing content of clip board.

Pasting into webview/RichDocument is another step, which requires a javascript interface?
Then it would also be possible to copy text in any other android app and paste it into collabora (as right now you can only copy&paste within the same document, or?)

[mmeeks]

With the other pieces of this work - you should be able to paste form anywhere, whenever you like without using a system-paste event. The problem is that a system paste event cannot be triggered from Javascript. In consequence we have to get it emitted by the native code. That could (probably) be done with a paste key injection instead. I guess some code like:

BaseInputConnection mInputConnection = new BaseInputConnection( findViewById(R.id.main_content), true);
KeyEvent kd = new KeyEvent(KeyEvent.ACTION_DOWN, KeyEvent.KEYCODE_PASTE);
KeyEvent ku = new KeyEvent(KeyEvent.ACTION_UP, KeyEvent.KEYCODE_PASTE);
mInputConnection.sendKeyEvent(kd);
mInputConnection.sendKeyEvent(ku);

Or somesuch; or even InputConnecction's sendKeyEvent ... not sure; for the case where that API is not there (?).

[tobiasKaminsky]

The problem with your new code idea is that KeyEvent.KEYCODE_PASTE only exists beginning from API 24 only.
As long as we do not find a way to do a paste on <24, nothing will happen on Lollipop and Marshmallow (5.x and 6.x).

[codecov]

Codecov Report

Merging #4189 into master will decrease coverage by 0.02%.
The diff coverage is 0%.

@@             Coverage Diff              @@
##             master    #4189      +/-   ##
============================================
- Coverage     14.33%   14.31%   -0.03%
  Complexity        1        1
============================================
  Files           331      331
  Lines         31030    31032       +2
  Branches       4405     4405
============================================
- Hits           4447     4441       -6
- Misses        25801    25808       +7
- Partials        782      783       +1

Impacted Files	Coverage Δ	Complexity Δ
...loud/android/ui/activity/RichDocumentsWebView.java	0% <0%> (ø)	0 <0> (ø)	⬇️
.../third_parties/daveKoeller/AlphanumComparator.java	80.95% <0%> (-2.39%)	0% <0%> (ø)
...in/java/com/owncloud/android/utils/ThemeUtils.java	49.14% <0%> (-1.71%)	0% <0%> (ø)
.../android/authentication/AuthenticatorActivity.java	1.88% <0%> (ø)	0% <0%> (ø)	⬇️

[codecov]

Codecov Report

Merging #4189 into master will increase coverage by 2.4%.
The diff coverage is 0%.

@@             Coverage Diff             @@
##             master    #4189     +/-   ##
===========================================
+ Coverage     14.33%   16.74%   +2.4%
  Complexity        1        1
===========================================
  Files           331      356     +25
  Lines         31030    31684    +654
  Branches       4405     4482     +77
===========================================
+ Hits           4447     5304    +857
+ Misses        25801    25487    -314
- Partials        782      893    +111

Impacted Files	Coverage Δ	Complexity Δ
...loud/android/ui/activity/RichDocumentsWebView.java	0% <0%> (ø)	0 <0> (ø)	⬇️
.../third_parties/daveKoeller/AlphanumComparator.java	80.95% <0%> (-2.39%)	0% <0%> (ø)
...a/com/owncloud/android/utils/FileStorageUtils.java	20.09% <0%> (-0.2%)	0% <0%> (ø)
src/main/java/com/owncloud/android/MainApp.java	54.54% <0%> (-0.16%)	0% <0%> (ø)
.../android/authentication/AuthenticatorActivity.java	1.87% <0%> (-0.02%)	0% <0%> (ø)
...ud/android/providers/DocumentsStorageProvider.java	1.06% <0%> (-0.01%)	0% <0%> (ø)
...roid/ui/activity/ReceiveExternalFilesActivity.java	0% <0%> (ø)	0% <0%> (ø)	⬇️
...loud/android/ui/activities/ActivitiesActivity.java	0% <0%> (ø)	0% <0%> (ø)	⬇️
...loud/android/datamodel/FilesystemDataProvider.java	0% <0%> (ø)	0% <0%> (ø)	⬇️
...owncloud/android/ui/adapter/UploadListAdapter.java	0% <0%> (ø)	0% <0%> (ø)	⬇️
... and 74 more

[nextcloud-android-bot]

IT test failed: https://www.kaminsky.me/nc-dev/android-integrationTests/10083

[tobiasKaminsky]

@mmeeks I would merge it as is:
>= Nougat: we have a proper paste
< Nougat (and >= Lollipop as we only support Collabora since then): we do get the "please use system paste" message.

Or do you have another idea?

[tobiasKaminsky]

Merging after CI is green as it is for >= Nougat an improvement.
