zephyr: correct the idc payload initialization #5512

rfredzim · 2022-03-10T16:06:08Z

Remove the dynamic allocation of per-core idc elements since these
are already statically allocated in a form of idc array in zephyr/wrapper.c.
The payload pointer initialization need to use idc entries which are returned by
get_idc() call.

Signed-off-by: Rafal Redzimski rafal.f.redzimski@intel.com

sofci · 2022-03-10T16:08:07Z

Can one of the admins verify this patch?

reply test this please to run this test once

gkbldcig · 2022-03-10T16:24:01Z

Can one of the admins verify this patch?

lgirdwood · 2022-03-10T16:50:33Z

@rfredzim please check email - I've sent invite that will automatically run CI for you. I will manually run it now.

lgirdwood · 2022-03-10T16:50:47Z

test this please
SOFCI TEST

lgirdwood · 2022-03-10T18:09:45Z

@kv2019i will need this for v2,1 final.

rfredzim · 2022-03-11T08:16:38Z

test this please
SOFCI TEST

kv2019i

One question inline.

src/idc/idc.c

kv2019i

Thanks, good catch!

rfredzim · 2022-03-14T15:25:09Z

test this please
SOFCI TEST

rfredzim · 2022-03-15T09:24:48Z

test this please
SOFCI TEST

lgirdwood · 2022-03-15T15:55:30Z

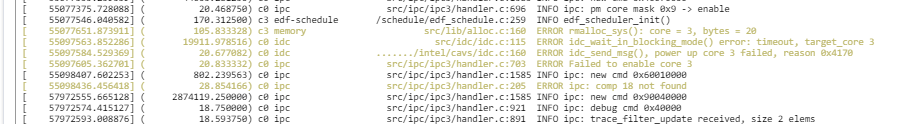

@kv2019i @lyakh looks like we could have some cache issue as I cant see why the ZZ LL scheduler number of tasks would be a large negative.

[    60594355.873447] (       76888.171875) c0 sa                          src/lib/agent.c:83   WARN validate(), ll drift detected, delta = 40345
[    60600462.956537] (        6107.083008) c0 sa                          src/lib/agent.c:83   WARN validate(), ll drift detected, delta = 40789
[    60724397.378696] (      123934.421875) c0 sa                          src/lib/agent.c:83   WARN validate(), ll drift detected, delta = 40339
[    60813451.281407] (       89053.906250) c0 sa                          src/lib/agent.c:83   WARN validate(), ll drift detected, delta = 40482
[    60985396.170408] (      171944.890625) c0 sa                          src/lib/agent.c:83   WARN validate(), ll drift detected, delta = 40321
[    60991511.430582] (        6115.260254) c0 sa                          src/lib/agent.c:83   WARN validate(), ll drift detected, delta = 40931
[    61041710.699420] (       50199.269531) c0 ipc                  src/ipc/ipc3/handler.c:1585 INFO ipc: new cmd 0x60050000
[    61041818.720249] (         108.020828) c2 pipe         2.11  ....../pipeline-stream.c:261  INFO pipe trigger cmd 0
[    61042345.386895] (         526.666626) c2 ssp-dai      1.0   /drivers/intel/ssp/ssp.c:1079 INFO ssp_trigger() cmd 0
[    61043090.543116] (         745.156250) c2 ssp-dai      1.0   /drivers/intel/ssp/ssp.c:1032 INFO ssp_stop(), RX stop
[    61043111.116031] (          20.572916) c2 ssp-dai      1.0   /drivers/intel/ssp/ssp.c:1054 INFO ssp_stop(): SSE clear SSP0
[    61043130.126447] (          19.010416) c2 ssp-dai      1.0   /drivers/intel/ssp/ssp.c:901  INFO ssp_post_stop releasing BCLK clocks for SSP0...
[    61043151.793113] (          21.666666) c2 ssp-dai      1.0   /drivers/intel/ssp/ssp.c:906  INFO ssp_post_stop releasing MCLK clocks for SSP0...
[    61043174.970195] (          23.177082) c2 dw-dma                 src/drivers/dw/dma.c:411  INFO dw_dma_stop(): dma 0 channel 0 stop
[    61043230.855610] (          55.885414) c2 zll-schedule       src/schedule/zephyr_ll.c:67   INFO task complete 0xbe083700 pipe-task
[    61043249.657693] (          18.802082) c2 zll-schedule       src/schedule/zephyr_ll.c:69   INFO num_tasks -1643638207 total_num_tasks 3
[    61044012.782662] (         763.125000) c0 ipc                  src/ipc/ipc3/handler.c:1585 INFO ipc: new cmd 0x60030000
[    61044104.553492] (          91.770828) c2 pipe         2.11  ......./pipeline-graph.c:342  INFO pipe reset
[    61044406.949313] (         302.395813) c2 dai          2.10           src/audio/dai.c:669  INFO dai_reset()
[    61044443.459728] (          36.510414) c2 dw-dma                 src/drivers/dw/dma.c:258  INFO dw_dma_channel_put

@rfredzim could you try adding this diff to your PR and see if it make any difference to the CI result.

diff --git a/src/schedule/schedule.c b/src/schedule/schedule.c
index 543f91e21..651b53502 100644
--- a/src/schedule/schedule.c
+++ b/src/schedule/schedule.c
@@ -65,7 +65,7 @@ void scheduler_init(int type, const struct scheduler_ops *ops, void *data)
            !ops->schedule_task_free)
                return;

-       sch = rzalloc(SOF_MEM_ZONE_SYS, 0, SOF_MEM_CAPS_RAM, sizeof(*sch));
+       sch = rzalloc(SOF_MEM_ZONE_SYS_SHARED, 0, SOF_MEM_CAPS_RAM, sizeof(*sch));
        list_init(&sch->list);
        sch->type = type;
        sch->ops = ops;

lyakh · 2022-03-15T17:10:23Z

@kv2019i @lyakh looks like we could have some cache issue as I cant see why the ZZ LL scheduler number of tasks would be a large negative.

@lgirdwood actually I don't see how this can be a cache corruption:

currently that memory is allocated with a cached alias. Once it is allocated, it is never freed as long as the core is running. And in fact we probably have to free this memory explicitly when that core powers off, don't we? But while that core (in our case core 2) is running, it accesses that memory via cache so that shouldn't cause any problems.
therefore the only way for this corruption to occur that I see is from a different core. So we assume that a different core previously allocated that (or adjacent) memory with a cached allocation. But all such allocations are cache-line aligned - both their start and size. So no overlapping can occur.
another possibility would be if this memory was previously allocated and freed on another core, before core 2 booted. When memory is freed its caches are invalidated. Headers of any heap chunks are only modified bypassing cache. So I don't see how after freeing any dirty cache lines can remain.

But there seems to be another bug in that code: sch->n_tasks should be set to 0 in zephyr_ll_scheduler_init(). I'll make a PR.

rfredzim · 2022-03-16T12:10:53Z

@lgirdwood & @lyakh, adding both changes to the PR:

use SOF_MEM_ZONE_SYS_SHARED for sch allocation
initialize n_tasks = 0

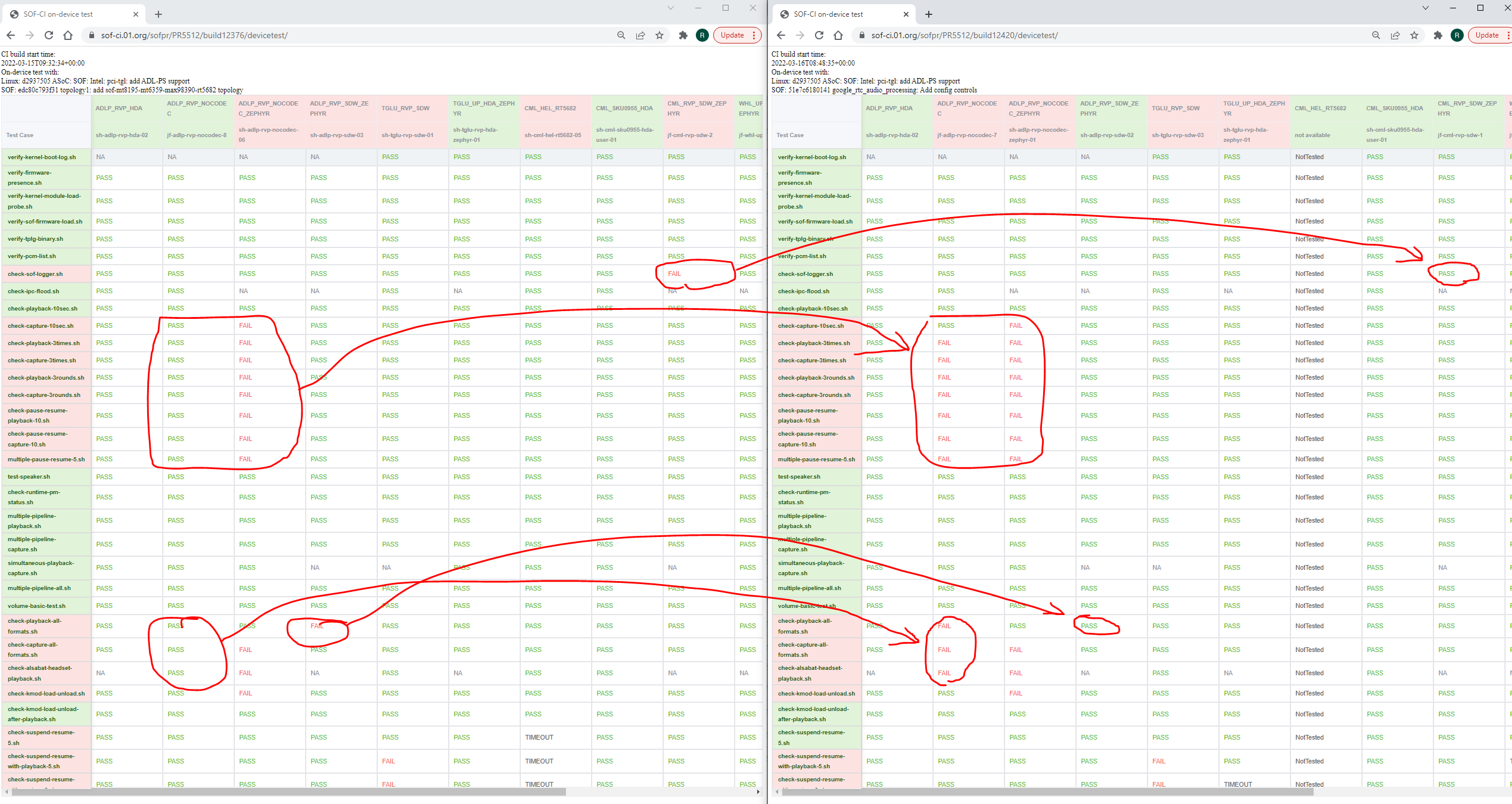

causes a bit surprising change of results to me in CI's pr_device_test:

Looks like some issues with edf_scheduler this time:

Do you have any further advise on this?

lgirdwood · 2022-03-18T17:11:42Z

@rfredzim something odd is indeed going on. One thing I noticed is that the IDC payload data is an array of structures per core that are not cache aligned.

diff --git a/src/include/sof/drivers/idc.h b/src/include/sof/drivers/idc.h
index 1c078b826..f4fbad072 100644
--- a/src/include/sof/drivers/idc.h
+++ b/src/include/sof/drivers/idc.h
@@ -96,7 +96,7 @@
 #define iTS(x) (((x) >> IDC_TYPE_SHIFT) & IDC_TYPE_MASK)

 /** \brief Max IDC message payload size in bytes. */
-#define IDC_MAX_PAYLOAD_SIZE   96
+#define IDC_MAX_PAYLOAD_SIZE   (DCACHE_LINE_SIZE * 2)

 /** \brief IDC free function flags */
 #define IDC_FREE_IRQ_ONLY      BIT(0)  /**< disable only irqs */

Can you try adding this to the PR and rerun the CI.

For zephyr case remove the dynamic allocation of per-core idc elements since these are already statically allocated in a form of idc array in zephyr/wrapper.c. The payload pointer initialization need to use idc entries which are returned by the get_idc() call. Signed-off-by: Rafal Redzimski <rafal.f.redzimski@intel.com>

lgirdwood · 2022-03-21T16:08:18Z

@rfredzim ok, CI looks better - I will rerun to be sure.

lgirdwood · 2022-03-21T16:08:28Z

SOFCI TEST

lgirdwood · 2022-03-21T19:28:53Z

@rfredzim looks like we need a small patch to fix fuzzer and testbench build

/usr/local/bin/clang -DBLD_COUNTERS=0 -DRELATIVE_FILE=\"src/lib/notifier.c\" -I/src/sof/src/include -I/src/sof/tools/oss-fuzz/build_oss_fuzz/sof_ep/build/generated/include -I/src/sof/src/arch/host/include -I/src/sof/src/platform/library/include -I/src/sof/src/arch/xtos-wrapper/include -O1 -fno-omit-frame-pointer -gline-tables-only -DFUZZING_BUILD_MODE_UNSAFE_FOR_PRODUCTION -fsanitize=address -fsanitize-address-use-after-scope -fsanitize=fuzzer-no-link -g -O3 -Wall -Werror -Wmissing-prototypes -Wimplicit-fallthrough -Wno-pointer-to-int-cast -Wno-int-to-pointer-cast -Wpointer-arith -DCONFIG_LIBRARY -imacros/src/sof/tools/oss-fuzz/build_oss_fuzz/sof_ep/build/library_autoconfig.h -MD -MT CMakeFiles/sof.dir/src/lib/notifier.c.o -MF CMakeFiles/sof.dir/src/lib/notifier.c.o.d -o CMakeFiles/sof.dir/src/lib/notifier.c.o -c /src/sof/src/lib/notifier.c
In file included from /src/sof/src/lib/notifier.c:9:
/src/sof/src/include/sof/drivers/idc.h:106:15: error: use of undeclared identifier 'DCACHE_LINE_SIZE'
        uint8_t data[IDC_MAX_PAYLOAD_SIZE];
                     ^
/src/sof/src/include/sof/drivers/idc.h:99:31: note: expanded from macro 'IDC_MAX_PAYLOAD_SIZE'
#define IDC_MAX_PAYLOAD_SIZE    (DCACHE_LINE_SIZE * 2)
                                 ^
1 error generated.

lgirdwood · 2022-03-21T19:29:31Z

@rfredzim ok, CI looks better - I will rerun to be sure.

Rerun looks good.

rfredzim · 2022-03-22T09:09:37Z

@rfredzim ok, CI looks better - I will rerun to be sure.

Rerun looks good.

Hi @lgirdwood I have pushed the cleanup of dcache aligned idc payload commit to this PR.
Please let me know if it is ok to have it as part of this PR, or separate one is needed or sth else.
Also do you want me to put your sign-off into this patch (since it is you who suggested the change)?

BR, Rafal

lgirdwood · 2022-03-22T09:27:29Z

@rfredzim ok, CI looks better - I will rerun to be sure.

Rerun looks good.

Hi @lgirdwood I have pushed the cleanup of dcache aligned idc payload commit to this PR. Please let me know if it is ok to have it as part of this PR, or separate one is needed or sth else. Also do you want me to put your sign-off into this patch (since it is you who suggested the change)?

BR, Rafal

Yep, pls keep it in this PR and you can add my SOB. Thanks !

Modify IDC payload size to be cache aligned and have size of 2 cache lines. Signed-off-by: Rafal Redzimski <rafal.f.redzimski@intel.com> Signed-off-by: Liam Girdwood <liam.r.girdwood@linux.intel.com>

rfredzim · 2022-03-22T10:05:26Z

@rfredzim ok, CI looks better - I will rerun to be sure.

Rerun looks good.

Hi @lgirdwood I have pushed the cleanup of dcache aligned idc payload commit to this PR. Please let me know if it is ok to have it as part of this PR, or separate one is needed or sth else. Also do you want me to put your sign-off into this patch (since it is you who suggested the change)?
BR, Rafal

Yep, pls keep it in this PR and you can add my SOB. Thanks !

Done. After the CI is complete I think the PR should be ready to merge.

lgirdwood · 2022-03-22T10:26:37Z

SOFCI TEST

lgirdwood · 2022-03-22T10:26:54Z

License server timeout for xcc - rerun CI.

lgirdwood · 2022-03-22T11:04:47Z

SOFCI TEST

rfredzim · 2022-03-22T12:59:47Z

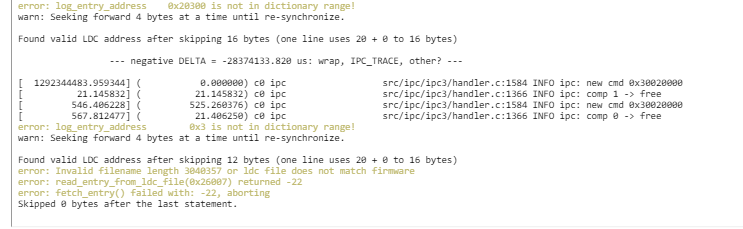

Interestingly now some tests fail due to this:

In the latest patch version I have added the #include <sof/lib/cache.h> to solve the fuzzer compilation, but not sure how it could break the *.ldc files to missmatch the actual built binary...

lgirdwood · 2022-03-22T13:11:25Z

Try CI again - could be a DUT issue as kernel logs are missing.

lgirdwood · 2022-03-22T13:11:42Z

SOFCI TEST

lgirdwood · 2022-03-22T13:13:09Z

Interestingly now some tests fail due to this:

In the latest patch version I have added the #include <sof/lib/cache.h> to solve the fuzzer compilation, but not sure how it could break the *.ldc files to missmatch the actual built binary...

Hmm, not sure either, I'm also seeing a failure on ADL with no kernel logs.. I've rerun to be sure.

lgirdwood · 2022-03-23T11:59:15Z

In the latest patch version I have added the #include <sof/lib/cache.h> to solve the fuzzer compilation, but not sure how it could break the *.ldc files to missmatch the actual built binary...

Hmm, not sure either, I'm also seeing a failure on ADL with no kernel logs.. I've rerun to be sure.

Ack - CI good again (kernel logs are visible), but will rerun one more time to be sure.

lgirdwood · 2022-03-23T11:59:24Z

SOFCI TEST

lgirdwood · 2022-03-23T13:48:53Z

All green !

rfredzim requested review from dbaluta, lbetlej, lgirdwood, mmaka1 and plbossart as code owners March 10, 2022 16:06

lgirdwood approved these changes Mar 10, 2022

View reviewed changes

lgirdwood added this to the v2.1 milestone Mar 10, 2022

kv2019i requested changes Mar 11, 2022

View reviewed changes

src/idc/idc.c Outdated Show resolved Hide resolved

rfredzim force-pushed the topic/idc-payload-initialization-fix branch from bff48f7 to 9aade0c Compare March 11, 2022 10:26

rfredzim requested review from kv2019i, lgirdwood and lyakh March 11, 2022 10:35

kv2019i approved these changes Mar 11, 2022

View reviewed changes

rfredzim force-pushed the topic/idc-payload-initialization-fix branch from 9aade0c to 4bc01fd Compare March 14, 2022 15:19

lgirdwood added the P1 Blocker bugs or important features label Mar 15, 2022

rfredzim force-pushed the topic/idc-payload-initialization-fix branch from 4bc01fd to e1e4482 Compare March 16, 2022 08:46

rfredzim requested a review from mrajwa as a code owner March 16, 2022 08:46

lgirdwood modified the milestones: v2.1, v2.2 Mar 16, 2022

rfredzim force-pushed the topic/idc-payload-initialization-fix branch from e1e4482 to 692cae9 Compare March 21, 2022 10:04

rfredzim force-pushed the topic/idc-payload-initialization-fix branch from 24d21c9 to 0a86d9e Compare March 22, 2022 07:59

idc: modify idc payload size and align to cache line size

3edb294

Modify IDC payload size to be cache aligned and have size of 2 cache lines. Signed-off-by: Rafal Redzimski <rafal.f.redzimski@intel.com> Signed-off-by: Liam Girdwood <liam.r.girdwood@linux.intel.com>

rfredzim force-pushed the topic/idc-payload-initialization-fix branch from 0a86d9e to 3edb294 Compare March 22, 2022 09:33

lgirdwood mentioned this pull request Mar 23, 2022

[BUG] Shared per core arrays need elems aligned to cache size on Intel DSPs #5589

Closed

lgirdwood merged commit a0e5583 into thesofproject:main Mar 23, 2022

zephyr: correct the idc payload initialization #5512

zephyr: correct the idc payload initialization #5512
