Vertx plugin test re-implementation

[BFergerson]

Having trouble with the tests failing the health check even though I can access them when I bash into the container, like so:

$ docker exec -it vertx-web-3.x-scenario-3.7.0-local bash
root@8ceaf8677392:/usr/local/skywalking/scenario# curl http://localhost:8080/vertx-web-3-scenario/case/healthCheck
Success

Hoping someone can take a look

[wu-sheng]

@dmsolr @arugal @Aderm Any of you take a look?

@BFergerson I will expect this PR hold for a while, #4599 includes some changes of plugin test due to span/ref.

[BFergerson]

Health check fail logs:

start container of testcase.name=vertx-web-3.x-scenario-3.7.0
WARNING: Your kernel does not support swap limit capabilities or the cgroup is not mounted. Memory limited without swap.
2020-04-09 06:15:32.231:INFO::main: Logging initialized @493ms to org.eclipse.jetty.util.log.StdErrLog
2020-04-09 06:15:32.499:INFO:oejs.Server:main: jetty-9.4.2.v20170220
2020-04-09 06:15:32.569:INFO:oejsh.ContextHandler:main: Started o.e.j.s.ServletContextHandler@d29f28{/,null,AVAILABLE}
2020-04-09 06:15:32.576:INFO:oejs.AbstractConnector:main: Started ServerConnector@1151e434{HTTP/1.1,[http/1.1]}{0.0.0.0:12800}
2020-04-09 06:15:32.577:INFO:oejs.Server:main: Started @839ms
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/run/vertx-web-3.x-scenario/libs/vertx-web-3.x-scenario.jar!/BOOT-INF/lib/logback-classic-1.1.11.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/run/vertx-web-3.x-scenario/libs/vertx-web-3.x-scenario.jar!/BOOT-INF/lib/log4j-slf4j-impl-2.6.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [ch.qos.logback.classic.util.ContextSelectorStaticBinder]
 health check failed!-scenario-3.7.0 url=http://localhost:8080/vertx-web-3-scenario/case/healthCheck, status=HTTP/1.1 404 Not Found
hostname: brandon-XPS-15-7590(127.0.1.1)

[codecov-io]

Codecov Report

✅ All modified and coverable lines are covered by tests.
✅ Project coverage is 51.47%. Comparing base (15f1e04) to head (b876173).
⚠️ Report is 2854 commits behind head on master.

Additional details and impacted files

@@             Coverage Diff              @@
##             master    #4624      +/-   ##
============================================
+ Coverage     51.39%   51.47%   +0.07%
- Complexity     2668     2670       +2
============================================
  Files          1275     1274       -1
  Lines         27659    27626      -33
  Branches       3003     3007       +4
============================================
+ Hits          14215    14220       +5
+ Misses        12801    12763      -38
  Partials        643      643

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:

• ❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.
• 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

[rainbend]

I started the test case locally, which seems to have something to do with curl.

[wu-sheng]

@BFergerson New test case expected file has been used. Please take a look at other test cases. The register has been removed.

[BFergerson]

@wu-sheng, is there a way to specify the Netty version for the plugin test? Previously the test for 3.4.0 worked and now I'm running into eclipse-vertx/vert.x#1872. I've tried adding this dependency manually:

<dependency>
     <groupId>io.netty</groupId>
     <artifactId>netty-resolver</artifactId>
     <version>4.1.18.Final</version>
 </dependency>

[wu-sheng]

@BFergerson You have the fully control of how to building the test application. We don't do anything about this.

[BFergerson]

@wu-sheng, I believe the reason it's failing now is that I'm missing the license header in some code files? A few of the test files like (https://github.com/apache/skywalking/blob/1483e31d3938c90a6f02a7fc4a3b24e49b79bd28/test/plugin/scenarios/vertx-eventbus-3.x-scenario/src/main/java/org/apache/skywalking/apm/testcase/vertxeventbus/util/CustomMessage.java) were taken from the Vert.x example source code (https://github.com/vert-x3/vertx-examples/blob/master/core-examples/src/main/java/io/vertx/example/core/eventbus/messagecodec/util/CustomMessage.java).

The Vert.x example code is under the same license this project is so I thought it was acceptable to use the code. What's the correct way to handle this?

[wu-sheng]

First, thank you for bring this up the attention, its LICENSE is important, even it is only test cases. If you are sure we need to include this(or you could rewrite the codes in other ways), we need to

According to the official release script, https://github.com/apache/skywalking/blob/master/tools/releasing/create_source_release.sh#L63-L71, test folder is included in the release source tar, so, here we should do,

1. LICENSE of this file should be added here, https://github.com/apache/skywalking/blob/master/LICENSE#L211-L225. In this case we should indicate the file names or folder names.
2. Exclude them from the apache rat check, https://github.com/apache/skywalking/blob/master/pom.xml#L411-L495

Personally, I prefer our own test codes, but this is not a block, choose the way you like.

[wu-sheng]

Tests passed. @dmsolr @arugal Please review.

[wu-sheng]

I reopen this for triggering the CI.

[wu-sheng]

@BFergerson @dmsolr Where is the CI control file change? I can't find it.

[wu-sheng]

.github/workflows/plugins-test.[0-4].yaml are the control files.

[rainbend]

Health check fail logs:

start container of testcase.name=vertx-web-3.x-scenario-3.7.0
WARNING: Your kernel does not support swap limit capabilities or the cgroup is not mounted. Memory limited without swap.
2020-04-09 06:15:32.231:INFO::main: Logging initialized @493ms to org.eclipse.jetty.util.log.StdErrLog
2020-04-09 06:15:32.499:INFO:oejs.Server:main: jetty-9.4.2.v20170220
2020-04-09 06:15:32.569:INFO:oejsh.ContextHandler:main: Started o.e.j.s.ServletContextHandler@d29f28{/,null,AVAILABLE}
2020-04-09 06:15:32.576:INFO:oejs.AbstractConnector:main: Started ServerConnector@1151e434{HTTP/1.1,[http/1.1]}{0.0.0.0:12800}
2020-04-09 06:15:32.577:INFO:oejs.Server:main: Started @839ms
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/run/vertx-web-3.x-scenario/libs/vertx-web-3.x-scenario.jar!/BOOT-INF/lib/logback-classic-1.1.11.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/run/vertx-web-3.x-scenario/libs/vertx-web-3.x-scenario.jar!/BOOT-INF/lib/log4j-slf4j-impl-2.6.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [ch.qos.logback.classic.util.ContextSelectorStaticBinder]
 health check failed!-scenario-3.7.0 url=http://localhost:8080/vertx-web-3-scenario/case/healthCheck, status=HTTP/1.1 404 Not Found
hostname: brandon-XPS-15-7590(127.0.1.1)

Hi @BFergerson @dmsolr
We don't seem to have solved the problem, right?

Have to add Vertx testcases into github action.

[BFergerson]

@wu-sheng, updated CI control files.

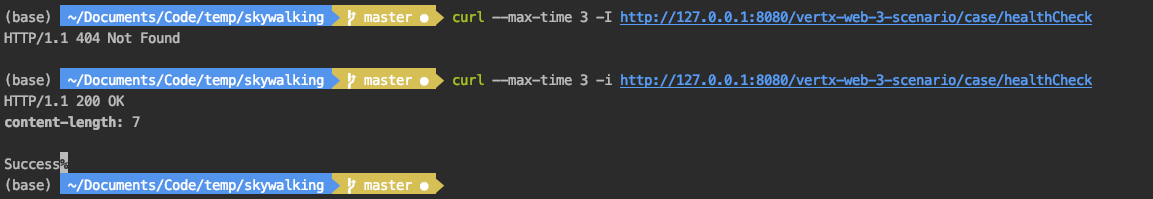

@arugal, I solved that issue by responding to HEAD requests. I previously thought the health check was a GET request.

[wu-sheng]

Vertx tests are failing, please recheck.

[BFergerson]

Should be good to go

[rainbend]

LGTM

[rainbend]

https://github.com/apache/skywalking/blob/master/docs/en/guides/Plugin-test.md#configurationyml

@BFergerson We forgot to explain in the document before, could you please help to modify it :) HealthCheck is HEAD and entryService is GET.
