Introduce `PeersIndicator` component by hebasto · Pull Request #127 · bitcoin-core/gui-qml

hebasto · 2022-06-03T17:59:02Z

The reference design: https://bitcoindesign.github.io/Bitcoin-Core-App/assets/images/block-clock-connection-states-big.png

Design features implementation:

a single blinking dot
dots are lit up proportional to the count of the outbound peers

Looking for designers' Concept (N)ACK, and developers' notes regarding QML code.

jarolrod

the design specifies spacing of 5 between each connection dot, and that each connection dot be 3x3, see: https://www.figma.com/file/GaCoOSNHB2yMB9ThiDtred/Bitcoin-Core-App?node-id=3288%3A70945

With these changes, it'll look a bit small in its current demo. But it should look fine when it's a part of the block clock.

jarolrod · 2022-06-03T18:31:57Z

+    implicitHeight: 16
+
+    Row {
+        spacing: 6


Suggested change

spacing: 6

spacing: 5

jarolrod · 2022-06-03T18:32:05Z

+        Repeater {
+            model: root.size
+            delegate: Rectangle {
+                width: 8


Suggested change

width: 8

width: 3

jarolrod · 2022-06-03T18:32:12Z

+            model: root.size
+            delegate: Rectangle {
+                width: 8
+                height: 8


Suggested change

height: 8

height: 3

hebasto · 2022-06-03T19:28:37Z

Fixed circular dependency.

the design specifies spacing of 5 between each connection dot, and that each connection dot be 3x3, see: https://www.figma.com/file/GaCoOSNHB2yMB9ThiDtred/Bitcoin-Core-App?node-id=3288%3A70945

Thanks! Updated.

But now dots look like square pixels :)

cc @GBKS

jarolrod · 2022-06-03T19:38:03Z

@hebasto yes that is true, if we need to scale it, we can scale it from the current proportions. The orginal implementation looked a lot like the PageIndicator we had before.

hebasto · 2022-06-03T19:47:35Z

we can scale it from the current proportions

Talking about scaling, we should scale down, rather up.

shaavan

Concept ACK

The added code changes effectively introduce the progress indicator.
I was able to successfully compile and run the PR on Ubuntu 22.04 with Qt version 5.15.3
As @jarolrod mentioned, following the design guide precisely regarding sizing and spacing leads to dots being relatively smaller than the ones displayed in PR.

Demo:

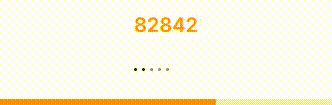

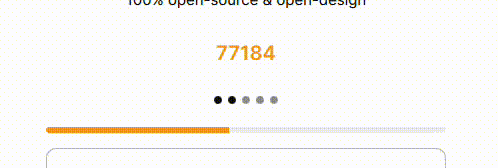

According to this PR	According design guide

I have attached my notes for this PR.

Notes:

The first commit replaces the “notify only about the total number of nodes change” to “notify about change in any type of nodes”. This change is necessary for the progress indicator component.
1. This is done by introducing a new struct PeersNumByType, which tracks all the types of nodes along with the total number of nodes.
The second commit introduces the variable to track the number of outbound peers connected and the total number of outbound peers that can connect.
The third commit introduces the PageIndicator.qml file, which utilizes the above two variables to display a real-time indicator for the number of peers connected to our node.
Commit four, including the PageIndicator.qml to the stub.qml file, allowing it to be displayed on the screen.

promag · 2022-06-04T10:21:14Z

+    int num_block_relay{0};
+    int num_manual{0};
+    int num_inbound{0};
+    for (const auto* node : nodes_copy) {


36e20da

Correct me if I'm wrong but I think it's safe to use node without AddRef/Release because DeleteNode isn't called concurrently with CConnman::NotifyNumConnectionsChanged.

Do you mind elaborating? What change do you suggest?

That's my point, I think the correct code is fine. Initially, I wondered if some AddRef/Release was needed.

promag · 2022-06-04T10:28:55Z

+import QtQuick 2.15
+import "../controls"
+
+Item {


b0b36d6

This can be Row? Then can drop width and height bindings below.

Otherwise below should bind implicitWidth and implicitHeight.

This can be Row?

Yes, it can. But using Item provides better encapsulation and hiding implementation details. For example, PeersIndicator { padding: 42 } will fail in the current branch.

Otherwise below should bind implicitWidth and implicitHeight.

Thanks! Updated.

hebasto · 2022-06-04T11:32:40Z

Updated 88b99c9 -> aad0ff4 (pr127.02 -> pr127.03, diff):

addressed @promag's comment:

Otherwise below should bind implicitWidth and implicitHeight.

Co-authored-by: Christoph Ono <chri@sto.ph>

hebasto · 2022-06-05T22:32:21Z

Updated aad0ff4 -> 179ca23 (pr127.03 -> pr127.04, diff):

addressed @jarolrod's comment
added blinking of the first dot according to the design
other small improvements (I hope)

jarolrod · 2022-06-06T02:25:51Z

concept ACK on node changes and QML changes. Node changes seem ready to open upstream

jarolrod · 2022-08-05T03:24:03Z

+// Distributed under the MIT software license, see the accompanying
+// file COPYING or http://www.opensource.org/licenses/mit-license.php.
+
+// The PeersIndicator component.


I guess there's no need for this line, just look at the path and name of the file

jarolrod · 2022-08-05T03:24:27Z

+// file COPYING or http://www.opensource.org/licenses/mit-license.php.
+
+// The PeersIndicator component.
+// See reference design: https://bitcoindesign.github.io/Bitcoin-Core-App/assets/images/block-clock-connection-states-big.png


Perhaps every component with a one to one link to a design file should have a link for easy reference to the design spec?

jarolrod · 2023-02-01T00:19:05Z

replaced by #236

hebasto · 2023-02-01T13:37:22Z

replaced by #236

Closed in favour of #236.
