Link to local files #879

azul · 2020-06-16T13:38:35Z

Resolves: Easily add links to other nextcloud files #308
Target version: master

Summary

Add a button to the menu bubble that links to local files.
See #308 for descriptions of the approach.

open in new tab on middle click and ctrl-click.
change dir param according to relative Path.
Open the file directly in viewer
Create urls that work everywhere - even from talk.
Make all strings translateable.
~~Fix creating links in workspace (currently uses wrong url for PROPFIND)~~ - also seems to be an issue with images

azul · 2020-06-18T10:07:43Z

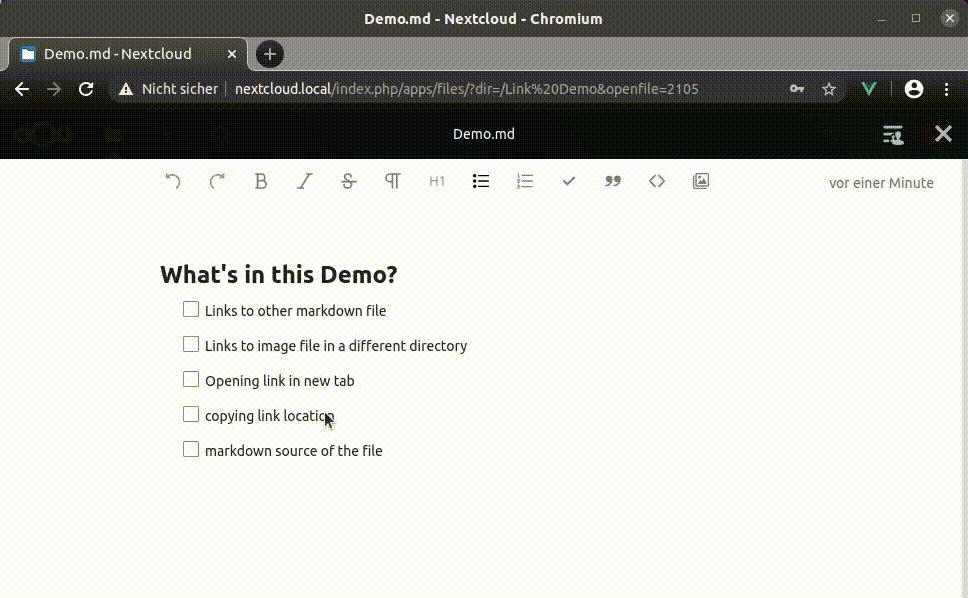

Here's a little demo of the basic functionality:

azul · 2020-06-18T10:10:49Z

I think this is enough for a first PR.

Things that i know are missing:

changing the browser title when following links
history / back button to go back after following a link
linking from within the workspace area.
(links work but creating them is broken just like inserting images is -> fix: path for workspaces #888 )

I'd be happy to see this merged as is. But maybe i can get to some of those before a review is ready.

juliusknorr · 2020-06-18T10:16:17Z

Wow, amazing contribution ❤️

I'll give this a detailed review later, the general approach seems all good to me.

changing the browser title when following links
history / back button to go back after following a link

Might be that those two are things we need to fix in viewer or the files app.

azul · 2020-06-18T10:30:46Z

src/marks/index.js

+								if (query.dir && fragment.relPath) {
+									const filename = fragment.relPath.split('/').pop()
+									const path = `${query.dir}/${filename}`
+									OCA.Viewer.open({ path })


This does not have the fileId as a fallback.
Sharing may lead to different directory layouts for different users.
If the calculated path is wrong for the current user... there is no way for the Viewer to recover from that.

We could find out the right path by looking up the exact file path by fileid.
But that adds complexity and another roundtrip.
This is an optimization to open links more smoothly then with window.location.
So it would be nice to avoid the roundtrip.

Not sure what the best approach here is.

Hm, I'm also not sure what to do in that regards.

azul · 2020-06-19T07:27:34Z

@juliushaertl You are right about the history navigation. There's no onPopState handler in the files app yet.

nextcloud/viewer#497 is an attempt to move in that direction.

juliusknorr · 2020-06-22T09:22:04Z

@azul Just a sidenode to make the rebasing process a bit easier, feel free to not commit the bundles until it is approved, and then we just add them right before the merge.

src/helpers/links.js

src/marks/index.js

juliusknorr

Some minor comments to the code, otherwise fine to get this in as a first step 👍

azul · 2020-06-25T08:04:15Z

@juliushaertl I rebased everything and added the regex fix you proposed.

jancborchardt · 2020-06-25T12:57:29Z

Wow @azul, that is amazing! Especially the linking to other markdown files – it’s the Hypertext! :)

azul · 2020-07-13T09:22:54Z

@juliushaertl I rebased again.

I think i addressed your comments. Please approve or let me know what else is missing.

Thanks 😃

jancborchardt · 2020-07-22T13:54:20Z

By the way @azul, we have a chat channel "Text team" on our Nextcloud Talk instance. I can invite you for a guest account via your email address if you like? :)

azul · 2020-07-24T16:22:31Z

I can invite you for a guest account via your email address if you like? :)

@jancborchardt, please do 😃

juliusknorr

Let's do this 👍

Tries both approaches: from the menu bubble and the menu bar Menu bubble works quite well so far. Only uses absolute paths. Menu bar uses relative paths. Pass filepath to Menu bubble so it cat * start there * calculate relative paths Move the logic for relative paths to helper. Make all strings translateable. Render relative links properly. The way we do this for img tags serves as an example. Signed-off-by: Azul <azul@riseup.net>

Since the menu bubble deals with links it makes more sense to add the button here. Moved it to the initial part of the menu bubble as an alternative to the link form. Hand current path to menu bubble and use it * to start from there when picking the file to link to * to calculate the relative path. Signed-off-by: Azul <azul@riseup.net>

The short relative links used in markdown need to be converted to working urls in the href attributes. In order to properly serialize the content the full urls in html need to be converted to relative links as well. This commit splits out the href handling into a new helper. This way it can be easily tested. Signed-off-by: Azul <azul@riseup.net>

The markdown we create for links to local files looks like this: ``` [Check this out!](subdir/file.md?fileid=123) ``` Turn this into a link like this ``` <a href="?dir=/current&openfile=123&relPath=subdir/file.md"> Check this out! </a> ``` The `relPath` part of the url is needed to convert it back to the original markdown. Includes a test. Next steps: * open links to local files in same tab. * change dir param according to relative Path. Signed-off-by: Azul <azul@riseup.net>

When navigating between different text documents one does not expect to open new windows all the time. Next steps: * open in new tab on middle click. Signed-off-by: Azul <azul@riseup.net>

also take into account `ctrl` keys. Use the href from html rather than markdown. This is an actual link that will work in nextcloud. Signed-off-by: Azul <azul@riseup.net>

Signed-off-by: Azul <azul@riseup.net>

rather than opening a completely new page Signed-off-by: Azul <azul@riseup.net>

This way they also work if the viewer was opened from other apps than the file app. Also move the `relPath` param into the fragment. It is only used to remember the relative path for generating the short markdown form from the link. Signed-off-by: Azul <azul@riseup.net>

Signed-off-by: Azul <azul@riseup.net>

This used to be working but was broken by having full hrefs rather than just the query part. Now we check if the domain remains the same and if we have a `dir` param in the query and a `relPath` param in the fragment. This should be a pretty good check for links that we can open in the viewer right away. Signed-off-by: Azul <azul@riseup.net>

Signed-off-by: Azul <azul@riseup.net>

make sure there are decimals in the fileId Co-authored-by: Julius Härtl <jus@bitgrid.net> Signed-off-by: Azul <azul@riseup.net>

This is more relyable then parsing the window location query for dir: * ?dir does not change when navigating between files right now * ?dir is not present when the viewer is used from within other apps. We used to fallback to the viewer state which solved the latter. However it is easier and less error prone to just rely on viewer state in the first place. Signed-off-by: Azul <azul@riseup.net>

juliusknorr · 2020-08-11T15:14:45Z

/compile /

juliusknorr · 2020-08-11T15:15:03Z

Cypress failures are unrelated.

Signed-off-by: npmbuildbot[bot] <npmbuildbot[bot]@users.noreply.github.com>

jochenstu · 2020-11-02T14:30:31Z

Linking to a docx file leads to an "There is no plugin available to display this file type" Error with OnlyOffice installed.

azul · 2020-11-03T10:13:11Z

@jochenstu I created a new issue for this so it does not get lost here.

That is also the format proposed for the nextcloud text app in nextcloud/text#879. This commit changes the router-links in the nav. It also works with links created by NC text but it will open them in new tabs because that is what tiptap does by default.

kevinde91 · 2021-01-11T21:40:29Z

Great work so far!
As I was looking for relPaths in Nextcloud I came up here.

So the case that a file is moved is allready mentioned, but what if the file is copied?
A new fileid will be generated and the link will redirect to the old file, right?

Is it possible to link a file with unknown id while the relPath (including file name) is known?

Thanks for your help!

azul · 2021-01-12T05:14:03Z

@kevinde91 I am not sure i understand the situation you are describing. Let me try to rephrase what i understood:

I create a file called original.md - it gets some file id say 123
I link to that file from another file in the text editor - the link will point to original.md?fileId=123
I copy the file to copy.md - the new file gets a id say 234.

Now the link will still point to original.md with it's file id. This seems intuitive to me. Would you like this behaviour to change?

Another thing we were discussing was allowing the creation of links to yet to be created files:

I link to copy.md even though it does not exist yet.
When clicking the link it will create the file and allow me to edit it.
When copying original.md to copy.md the link will start pointing to the copied file.

Is that what you were talking about?
My understanding is that this currently does not work with the text app. It lacks

The ui for generating links to arbitrary (possibly non-existing file names)
(It should very much be possible by editing the markdown with other means.)
Handling links to missing docs by creating the doc.

kevinde91 · 2021-01-12T08:31:57Z

@azul thanks for the fast reply, and sorry for the confusion.

I tried to recreated my problem and this time it behaved exactly how it should:

Create a folder 'Original'
Create a folder 'Subfolder' in 'Original'
Create file 'linked_file.md' in 'Subfolder' with some text and create file 'test.md' with a link to 'linked_file.md'
Create a folder 'Copy' in the root dir
Copy 'Subfolder' from 'Original' to 'Copy'
Change text in 'Copy/Subfolder/linked_file.md'
Open 'Copy/Subfolder/test.md' and click on the link, the new 'linked_file.md' with changed text will be openend.

Sorry again for wasting your time, not sure what I did wrong yesterday.
