Enhanced Dockerfile and update GHA workflows #14685

crazy-max · 2022-05-06T16:13:37Z

This is a follow-up of #14644 (comment) to start working with the native netlify client to leverage the possibility to fetch remote resources.

This PR is just a prep to handle that because the current Dockerfile use a quite old jekyll image starefossen/github-pages:198 (~3 years old) that doesn't support some Gem dependencies.

Instead of relying on a pre-built Jekyll image I switched to a vanilla ruby image.

I also vendor and push the Gemfile.lock in the repo as it should so we can pin to a specific Jekyll version as well as the plugins being used in our configuration. Atm it's Jekyll 4.2.2. I have created a dedicated stage to vendor our Gemfile in case we want to update and vendor the lock file ourselves:

$ make vendor
# or
$ docker buildx bake vendor

This is important so we are sync with our lock file while installing dependencies and deploying. Otherwise we could have unexpected behaviors if Jekyll or its plugins are updated. Same spirit as the go.sum.

I have also updated the GHA workflows accordingly. Also merge our build-*.yml altogether as there are some dedup logic that can be mutualized. Let me know what you think about this one.

crazy-max · 2022-05-06T16:14:34Z

docker-bake.hcl

+  args = {
+    JEKYLL_ENV = JEKYLL_ENV
+  }
+  no-cache-filter = ["upstream-resources"]


Thanks to the no-cache-filter there is no need to use docker build --no-cache. Just this specific stage will be invalidated.

netlify · 2022-05-06T19:01:50Z

✅ Deploy Preview for docsdocker ready!

Name	Link
🔨 Latest commit	`26543e2`
🔍 Latest deploy log	https://app.netlify.com/sites/docsdocker/deploys/62756ee5e434700008f91fec
😎 Deploy Preview	https://deploy-preview-14685--docsdocker.netlify.app
📱 Preview on mobile	Toggle QR Code... Use your smartphone camera to open QR code link.

To edit notification comments on pull requests, go to your Netlify site settings.

crazy-max · 2022-05-06T19:05:20Z

required checks should switch to the new ones if we merge this PR as the workflow is now mutualized to avoid dedup.

netlify · 2022-05-06T19:08:21Z

✅ Deploy Preview for docsdocker ready!

Name	Link
🔨 Latest commit	`0f493a1`
🔍 Latest deploy log	https://app.netlify.com/sites/docsdocker/deploys/627ebaa93295a7000817efef
😎 Deploy Preview	https://deploy-preview-14685--docsdocker.netlify.app
📱 Preview on mobile	Toggle QR Code... Use your smartphone camera to open QR code link.

To edit notification comments on pull requests, go to your Netlify site settings.

crazy-max · 2022-05-06T19:29:19Z

Dockerfile

+FROM gem AS htmlproofer
+RUN --mount=type=bind,from=generate,source=/out,target=_site \
+  --mount=type=cache,target=/usr/local/bundle \
+  htmlproofer ./_site \
+    --disable-external \
+    --internal-domains="docs.docker.com,docs-stage.docker.com,localhost:4000" \
+    --file-ignore="/^./_site/engine/api/.*$/,./_site/registry/configuration/index.html" \
+    --url-ignore="/^/docker-hub/api/latest/.*$/,/^/engine/api/v.+/#.*$/,/^/glossary/.*$/"


I moved the htmlproofer check in our Dockerfile so we can also check locally.

crazy-max · 2022-05-09T08:36:50Z

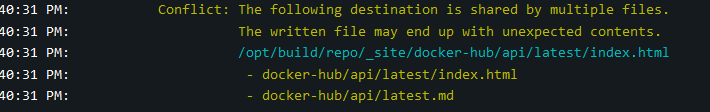

Since this PR and switch to Jekyll 4.2.2, there is a conflict being reported: https://app.netlify.com/sites/docsdocker/deploys/62783880dcb06f000a4f7d25#L243

Looks like we push an index.html file which collides with a markdown file: https://github.com/docker/docker.github.io/tree/master/docker-hub/api. I guess we should remove https://github.com/docker/docker.github.io/tree/master/docker-hub/api/latest

thaJeztah · 2022-05-09T12:07:02Z

Looks like we push an index.html file which collides with a markdown file: https://github.com/docker/docker.github.io/tree/master/docker-hub/api. I guess we should remove https://github.com/docker/docker.github.io/tree/master/docker-hub/api/latest

Yes, that looks a bit suspicious. https://github.com/docker/docker.github.io/blob/master/docker-hub/api/latest/index.html looks to have a redirect in it (but the redirect is to the page itself? Given that the latest.md includes a template/layout to use, I think the latest.md is the correct one.

thaJeztah · 2022-05-09T12:08:13Z

Gemfile

-# Update me once in a while: https://github.com/github/pages-gem/releases
-# Please ensure, before upgrading, that this version exists as a tag in starefossen/github-pages here:
-# https://hub.docker.com/r/starefossen/github-pages/tags/
-#


Any of this information useful to keep somewhere?

Not relevant anymore since we use a vanilla Ruby image.

thaJeztah · 2022-05-09T12:09:46Z

Dockerfile


-# Engine
 ARG ENGINE_BRANCH="20.10"


Should we use the new format to describe arguments (to allow the docker buildx outline feature to describe things?)

Yes we could but these args will be removed in this follow-up if we are ok with it. See crazy-max/docker-docs@enhanced-dockerfile...crazy-max:fetch-remote-plugin

.github/workflows/build.yml

thaJeztah · 2022-05-09T12:14:15Z

_config.yml

+  - ee
+  - index.html
+  - js/metadata.json
+  - LICENSE


Does this exclude LICENSE from the final image? (wondering if we need to keep it)

Yes was not sure if it's relevant to have the LICENSE and README.md on the website actually:

https://docs.docker.com/LICENSE

https://docs.docker.com/README.md

Maybe better in a separate PR for this one?

crazy-max · 2022-05-13T11:56:00Z

You might be interested by this one @StefanScherer if you want to take a look

thaJeztah

LGTM, thanks!

thaJeztah · 2022-05-13T17:32:46Z

Gemfile.lock

+PLATFORMS
+  x86_64-linux


Will this affect things when building on an M1 ? (or do we not have an arm64 image either way?)

Afaik it will not break anything. It just says that this lock has been generated on this platform. We can add more of them which should be supported using bundle lock --add-platform .... As I can see the official ruby image support a bunch of platforms for the 2.6.10 tag we use:

So I would say we could add them. Or at least linux/arm64.

Ok tested on M1 and it just adds aarch64-linux to the list of platforms in the lock file. I've updated the lock file with it.

Also tried building on raspberry which seems to work fine. So I also added arm-linux.

$ uname -a Linux foo 5.10.63-v7l+ #1459 SMP Wed Oct 6 16:41:57 BST 2021 armv7l GNU/Linux

Oh! Living on the edge; building it on a rPI! 😂

Signed-off-by: CrazyMax <crazy-max@users.noreply.github.com>

thaJeztah

LGTM!

StefanScherer

LGTM

thaJeztah · 2022-05-18T14:12:06Z

Thanks!
