Fix mesh display in tutorial

[drammock]

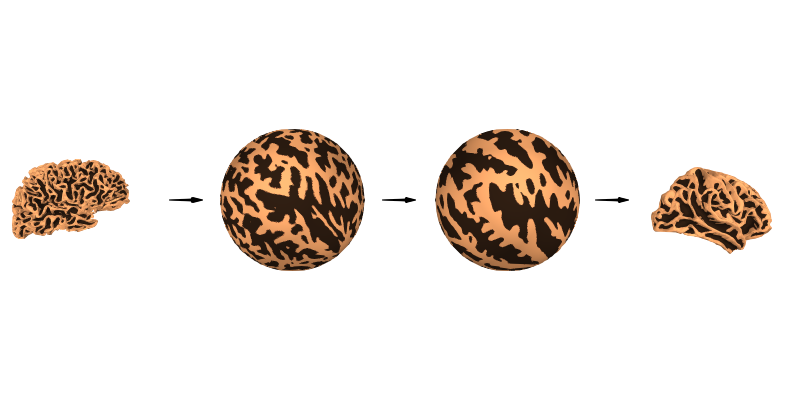

This should fix the mesh display color bug that has been in tutorials/forward/50_background_freesurfer_mne.py since the 1.0 release (last known good was 0.24). Unfortunately we probably won't be able to tell because that tutorial is bricking Circle in other ways right now:

generating gallery for auto_tutorials/forward... [ 75%] 50_background_freesurfer_mne.py
Clean 1636.6 s : 1.73 GB
qt.qpa.xcb: QXcbConnection: XCB error: 128 (Unknown), sequence: 15178, resource id: 2098234, major code: 130 (Unknown), minor code: 2

...and I haven't been able to pinpoint the cause of that yet.

[drammock]

hmm... macOS CIs do not actually fail here. Only failure is this on Windows 3.9 conda, in test test_get_coef_multiclass_full[4-10-2] and it's a ThreadExceptionWarning (unrelated?):

https://dev.azure.com/mne-tools/mne-python/_build/results?buildId=22143&view=logs&j=2bd7b19d-6351-5e7f-8417-63f327ab45bc&t=0c49e006-47ab-5675-a040-5d301cde7356&l=3354

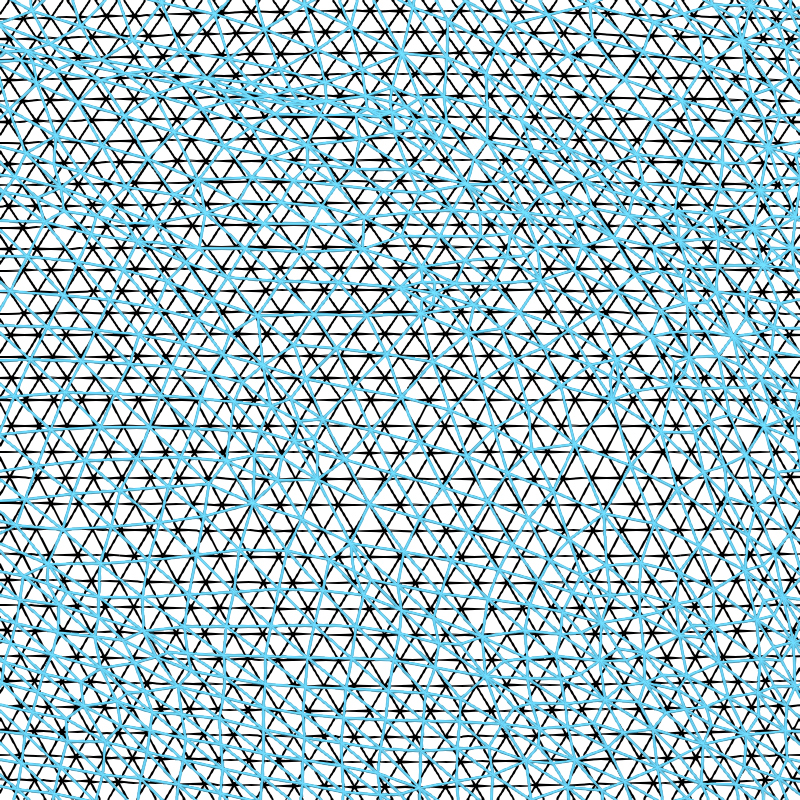

But unfortunately the rendered tutorial is better, but not all the way fixed:

https://output.circle-artifacts.com/output/job/ea11ac33-7953-417e-ad83-aefc14a19f85/artifacts/0/dev/auto_tutorials/forward/50_background_freesurfer_mne.html#cortical-alignment-spherical

Locally it looks correct for me though. More debugging necessary.

[larsoner]

Locally it looks correct for me though. More debugging necessary.

My initial reaction to this was that it was probably a MESA bug. Locally I got good plots natively, but could replicate with xvfb-run, which uses MESA under the hood:

$ MNE_3D_OPTION_MULTI_SAMPLES=1 MNE_SKIP_INSTANCE_ASSERTIONS=1 PATTERN=50_background_freesurfer xvfb-run make html_dev-pattern-memory

Once I had that, I could debug locally to figure it out. Things I changed:

1. Deal with what must be a MESA wireframe bug by setting line_width > 1 and render_lines_as_tubes=True. It changes the rendering sufficiently that it renders properly.
2. Automatically set smooth_shading=False when representation='wireframe' inside renderer.mesh() because you never want it on for a wireframe (it won't render properly I don't think)
3. Cull to the +X tris so that you only get one set in the view (which is from the right), and change the distance to 150 (the spheres extend to 100 so this is a nice distance).
4. Fix a camera reset bug -- it wasn't affecting the plots but was a bug that I noticed. We shouldn't use the default render=True in our reset_camera call within set_view but rather call plotter.reset_camera(render=False) because we then immediately change some stuff about the view, then (optionally) call update. This should fix some jerky Brain behavior I've never been able to track down until now where opening a window causes the views to "flash" a bit on startup. It should also make things slightly faster because it avoids a render of a view that is never used.

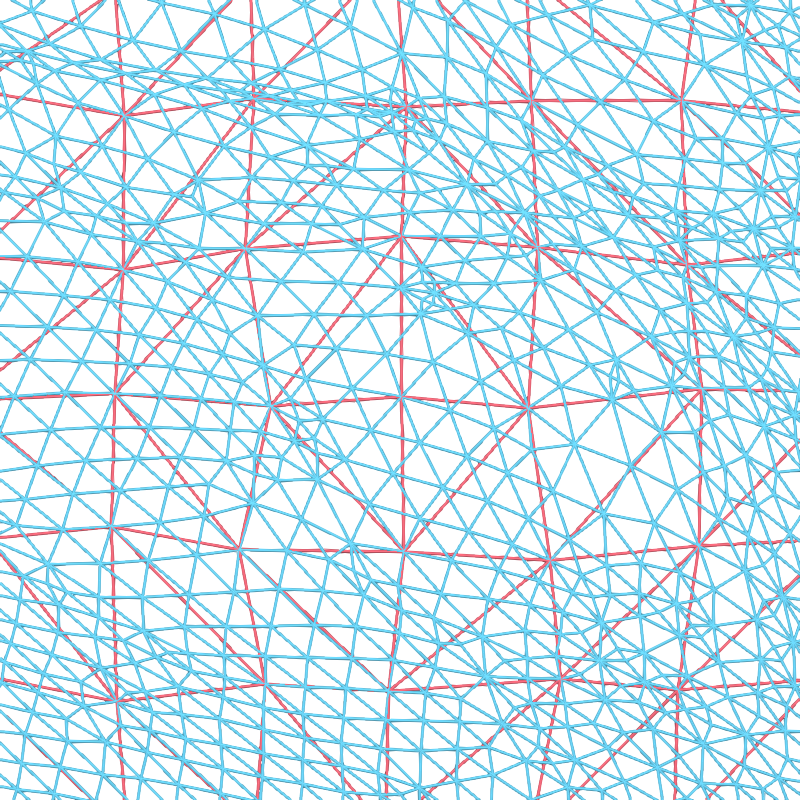

You can see the fixed outputs here:

https://output.circle-artifacts.com/output/job/c42d266b-d50e-461c-a41c-f6cf7f8951f1/artifacts/0/dev/auto_tutorials/forward/50_background_freesurfer_mne.html#cortical-alignment-spherical
